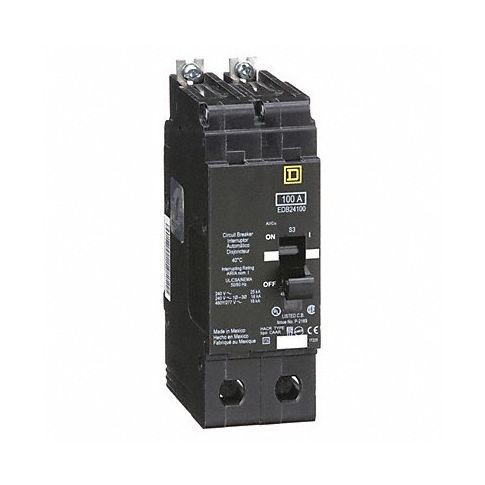

Circuit Breaker 100A Bolt On 277/480V 2P MPN:EDB24100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3TW34
Circuit Breaker 100A Bolt On 277/480V 2P
The Square D Circuit Breaker is designed for heavy-duty applications with its robust construction and reliable performance. It offers a range of features including interrupt currents detection, stable and safe installation, and enhanced load center organization. With an amperage rating of 100A and voltage rating of 277/480V AC, it can efficiently handle demanding electrical needs in various industries such as commercial and residential buildings. Its standard type ensures easy and smooth functioning, making it a top choice for professionals who require robust circuit breakers that last long.
Top product features:
- Interrupt currents detection for safety
- Lug orientation for straight-in wiring through bus bars
- Robust construction for heavy-duty applications
Top product applications:
- Electrical systems in commercial and residential buildings
- Industrial settings to protect equipment from overload
- Temporary power sources during construction or maintenance work
These EBD and EGB series miniature circuit breakers are bolted into place in NF panelboards, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 125V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Single
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 1.96 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB24100
- MPN: EDB24100
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00A2BP18I
