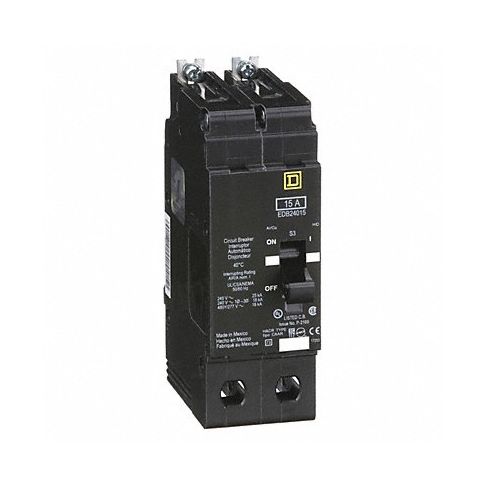

Circuit Breaker 15A Bolt On 277/480V 2P MPN:EDB24015
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3TW22
Circuit Breaker 15A Bolt On 277/480V 2P
The Square D EBD/EGB miniature circuit breakers are the perfect solution for safe and efficient electrical distribution in your home or workplace. These sturdy bolt-on circuit breakers offer amperages ranging from 1 to 30 amps and voltage ratings of 277V, making them suitable for various applications such as lighting circuits and small appliances. With a load center orientation that allows for direct wiring through bus bars, these circuit breakers eliminate the need for pigtail wires and help you organize your load center. Their stable design ensures optimal safety against potential electrical hazards. Invest in Square D's EBD/EGB miniature circuit breakers to enjoy reliable, hassle-free electrical distribution.
Top product features:
- Bolt-on design for increased stability compared to plug-in or unit-mount circuit breakers.
- Interrupts currents at low fault levels to prevent potential electrical hazards.
- Lug orientation for straight-in wiring through bus bars, eliminating the need for pigtail wires and promoting organization in the load center.
Top product applications:
- Home electrical circuits for lighting fixtures and appliances that require a standard circuit breaker.
- Commercial buildings and facilities to protect electrical components from overload and potential damage due to fault currents.
- Residential or commercial load centers for safe distribution of electricity in multi-room installations.
These EBD and EGB series miniature circuit breakers are bolted into place in NF panelboards, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Single
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 1.96 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 6 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB24015
- MPN: EDB24015
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
