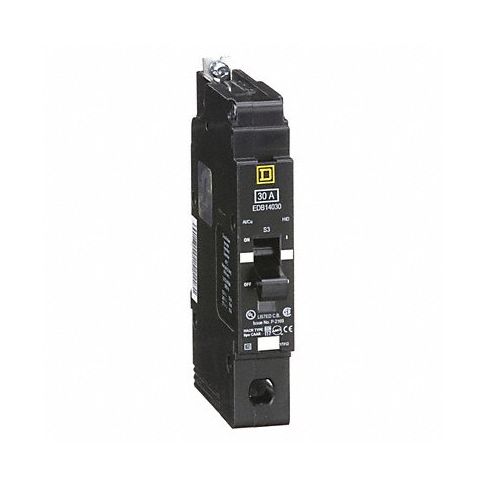

Circuit Breaker 30A Bolt On 277V 1P MPN:EDB14030
Free Shipping
In Stock
The Circuit Breaker 30A Bolt On 277V 1P from Square D is an ideal choice for applications requiring a secure and stable circuit breaker solution. With its miniature design, this circuit breaker fits perfectly into NF panelboards, ensuring stability that surpasses plug-in or unit-mount circuit breakers. Its lug orientation allows straight-in wiring through bus bars, eliminating the need for pigtailing wires and streamlining your load center. This product offers 30 amps of power with a voltage rating of 277V AC, making it suitable for various electrical applications such as offices, schools, hospitals, or industrial facilities. The standard circuit breaker type ensures reliable current interruption and protection from low-level faults, ultimately enhancing safety and efficiency in your space.
Top product features:
- Bolt-on design for increased stability Secures the circuit breaker into place for long-lasting use in NF panelboards.
- Lug orientation allows straight-in wiring Simplifies and organizes wiring by eliminating the need for pigtailing wires.
- Interrupts low-level faults Safeguards electrical circuits and prevents overloading or damage to appliances.
Top product applications:
- Ideal for panelboard installations where stability is important The bolted-on design ensures that it remains securely in place during operation.
- Suitable for commercial and industrial use With a 30 Amp rating, the circuit breaker can handle heavy loads with ease.
- Use as a protective device against fault currents Its standard circuit breaker type detects and interrupts low-level faults to prevent overload or damage to appliances.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 277V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Single
- Series EDB
- Max. AIR Rating 18kA at 120/240V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 0.98 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 6 AWG
- Standards cULus, IEC
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB14030
- MPN: EDB14030
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
