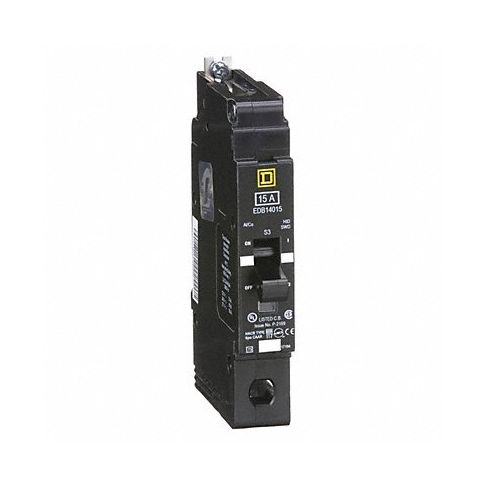

Circuit Breaker 15A Bolt On 277V 1P MPN:EDB14015
Free Shipping
In Stock
Introducing our Miniature Circuit Breaker designed specifically for commercial and industrial settings. With its durable build and ability to interrupt low-level fault currents, this 15 Amp, 277V AC circuit breaker is ideal for bolted installation in NF panelboards for increased stability. The load center's wiring organization eliminates the need for pigtailing and messy connections, resulting in a cleaner and more organized electrical system. Use our Miniature Circuit Breaker for reliable overcurrent protection, while benefiting from its enhanced safety features that detect and interrupt fault currents. Suitable for use in various applications, including lighting controls, machines, and appliances, this circuit breaker is a must-have for any electrical setup. Order yours today and experience the difference of our premium miniature circuit breaker!
Top product features:
- Interrupts low-level fault currents
- Bolted installation for increased stability
- Lug orientation for straight-in wiring and easy organization
Top product applications:
- Use in commercial and industrial settings for overcurrent protection
- In applications requiring low-level fault current interruption
- For use in systems where wiring organization is crucial
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 277V AC
- Circuit Breaker Type Standard
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Single
- Series EDB
- Max. AIR Rating 18kA at 120/240V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 0.98 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 6 AWG
- Standards cULus, IEC
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB14015
- MPN: EDB14015
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
