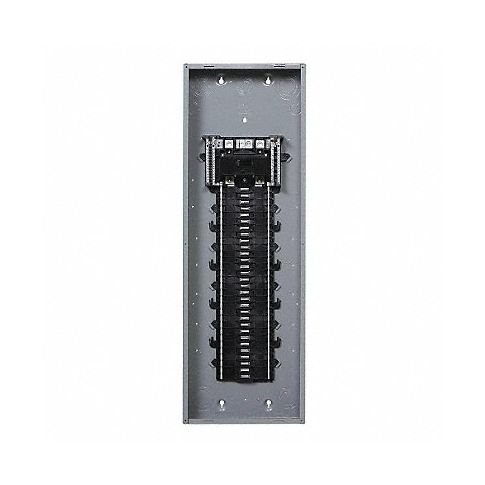

Load Center 200A CB 1 Phase 60 Spaces MPN:QO160M200PC
The Load Center 200A CB 1 Phase 60 Spaces from Square D is a reliable and efficient main breaker load center designed for distributing power supply in residential, commercial, and industrial settings. With its heavy-duty construction, this product offers a robust protection against overcurrents with its 200 Amp rating. Additionally, it can be converted to a main lug load center, allowing users to use remote panels when required. It features neutral bars on both sides of the bus bars for compatible AFCI or GFCI breakers that plug directly into the bus and neutral bars without needing pigtail connections. With 60 spaces available, this product offers ample room for electrical installations and can handle the demanding needs of various applications. Easy to use and durable, the Load Center 200A CB 1 Phase 60 Spaces from Square D is an ideal choice for any property looking to enhance its power distribution capabilities.
Top product features:
- Compatible with AFCI and GFCI breakers for enhanced safety
- Neutral bars on both sides for easy wiring
- 60 spaces for ample electrical installation options
Top product applications:
- Residential service entrance for electrical distribution
- Commercial or industrial wiring and power supply systems
- Installation in outdoor cabinets or equipment enclosures for weather protection
Technical Specifications
- Item Load Center
- Number of Spaces 60
- Amps 200 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Flush Cover
- Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker
- Max. No. of Tandem Breakers 0
- Phase 1
- Series QO
- Height 43 5/32 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 22kA
- Enclosure NEMA Rating 1
- Cover Attachment Style Screw On
- Cover Closure Method Lift-Off
- Recommended Flush Cover Included
- Recommended Ground Bar Kit Mfr. No. PK23GTA
- Recommended Surface Cover Included
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO160M200PC
- MPN: QO160M200PC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
