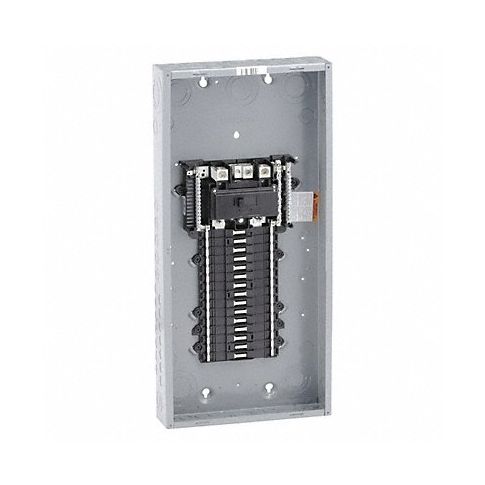

Load Center 200A CB 1 Phase 30 Spaces MPN:QO130M200P
Introducing the Load Center 200A CB 1 Phase 30 Spaces from Square D - a reliable and durable solution for distributing power in residential, commercial, or industrial settings. This main breaker load center comes equipped with a protection device to prevent overcurrents and can be converted into a main lug load center with an optional kit. Its versatile design includes neutral bars that enable the use of AFCI or GFCI breakers directly on the bus and neutral bars, without any additional pigtail connections required. Installing this product is straightforward due to its compatibility with Square D's QO series breakers, making it suitable for a range of applications. Upgrade your electrical distribution system today with the Load Center 200A CB 1 Phase 30 Spaces from Square D - an excellent investment that delivers unbeatable performance and reliability.
Top product features:
- Main breaker to protect the circuit from overcurrents
- Neutral bar on either side of the bus bars for AFCI or GFCI breakers
- Compatibility with QO series breakers
Top product applications:
- Residential service entrance for main breaker distribution
- Commercial use for multi-phase power supply
- Industrial setting as a main load center for machine control
Technical Specifications
- Item Load Center
- Number of Spaces 30
- Amps 200 A
- Voltage 120/240V AC
- Circuit Breaker Type QO
- Included Enclosure Cover Order Separately
- Main Circuit Breaker or Main Lug Convertible, Main Circuit Breaker
- Max. No. of Tandem Breakers 0
- Phase 1
- Series QO
- Height 29 27/32 in
- Width 14 1/4 in
- Depth 3 3/4 in
- For Use With Square D QO Circuit Breakers
- Bus Material Tin Plated Copper
- Short Circuit Current Rating 22kA
- Enclosure NEMA Rating 1
- Recommended Flush Cover 1D435
- Recommended Ground Bar Kit Mfr. No. PK18GTA
- Recommended Surface Cover 1D436
- Color Gray
- Enclosure Material Steel
- Enclosure Surface Finish Enamel
- Feed Location Top/Bottom
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 23 Degrees F
- Special Features Mercury Free
- Location Indoor
- Standards RoHS Compliant, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO130M200P
- MPN: QO130M200P
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109050
- GDS Category Name: Load Centers and Panelboards
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121101
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Load centers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
