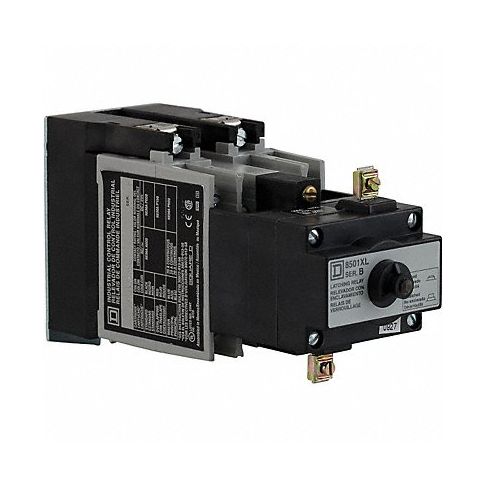

H2727 Latching NEMA Control Relay4NO120VAC10A MPN:8501XO40XLV02

Technical Specifications

• Item - Relay Latching NEMA Style Control Relay
• Coil Volts 120V AC
• AC Contact Rating - Relay 10A @ 120/240/480/600V
• DC Contact Rating - Relay 5A @ 125/250V
• Number of Pins - Relay 10
• Contact Form - Relay (4) SPST-NO
• Mounting - Relay Surface
• Power Consumption - Relay 23.0 VA
• Body Height - Relay 3.5 in
• Body Width - Relay 2.23 in
• Body Depth - Relay 3.95 in
• Overall Height - Relay 3.5 in
• Hz - Electrical 60 Hz
• Response Time Drop Out: 13 msec, Pick Up: 15 msec
• Contact Material Silver Cadmium Oxide
• Accessory Group G
• Features Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring
• Standards CE, CSA, UL

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: 8501XO40XLV02
• MPN: 8501XO40XLV02

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: IEC and NEMA Style Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121514
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Power relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
