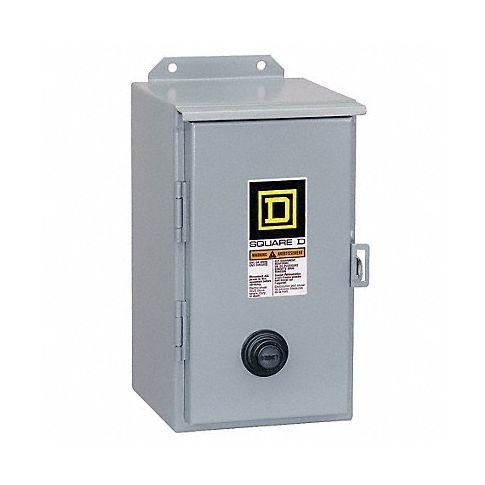

Magnetic Motor Starter NEMA 208V 3P 90A MPN:8536SEA1V08
Free Shipping
In Stock
Introducing the NEMA Magnetic Motor Starter with Standard Overload Relays - perfect for any industrial or commercial setting where reliable and efficient motor control is crucial! This powerful starter provides full-voltage start and stop capabilities for single and three-phase AC motors, along with built-in thermal overload protection to prevent overheating. With a convenient push-to-test feature and visible trip indicator, it ensures easy monitoring and maintenance of your equipment. The manual reset function allows for safe control of your motor operations, while the angled contacts provide positive seating and high contact pressure for reliable performance. Its trip-free construction also ensures that the overload relay will always trip even if the reset lever is blocked or in the reset position - so you never have to worry about a stuck relay causing downtime! Ideal for use in various applications such as pumps, conveyors, compressors, and fan drives, this magnetic motor starter offers a cost-effective and efficient solution for your motor control needs. Upgrade to better motor protection and control with the NEMA Magnetic Motor Starter today!
Top product features:
- Manual push-to-test and visible trip indicator
- Trip-free construction allows overload relay to trip even if reset lever is blocked or in the reset position
- Angled contacts provide high contact pressure and positive seating.
Top product applications:
- Industrial automation and manufacturing
- Agricultural and farm equipment
- Commercial and residential HVAC systems
Technical Specifications
- Item Magnetic Motor Starter
- NEMA Size 3
- Amps AC 90 A
- Coil Volts 208V AC
- Enclosure NEMA Rating 12, 3R
- HP @ 3 Phase - 240V 30 hp
- HP @ 3 Phase - 480V 50 hp
- Action Nonreversing
- Number of Poles 3
- HP @ 3 Phase - 208V 25 hp
- HP @ 3 Phase - 575V 50 hp
- Height 31.5 in
- Width 18.16 in
- Depth 9.56 in
- Standards UL Listed/CSA Certified
- Includes Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism
- Starter Type NEMA
- Hz 50/60
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8536SEA1V08
- MPN: 8536SEA1V08
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Magnetic Starters with Thermal Overload
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:28pm UTC Category: Starters and Contactors
