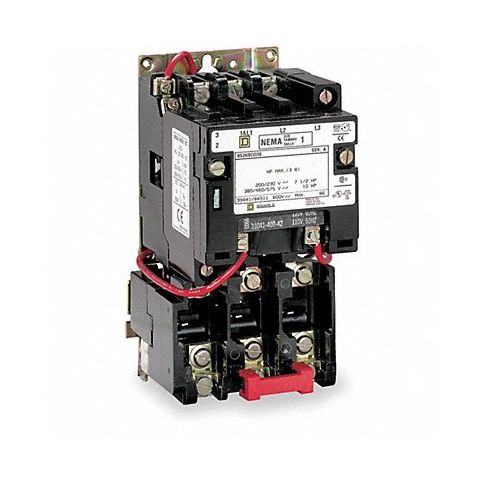

Magnetic Motor Starter NEMA 120V 2P 9A MPN:8536SAO11V02S
The Square D Magnetic Motor Starter NEMA 120V 2P 9A is an ideal choice for starting and stopping 1- or 3-phase AC motors with ease. This full-voltage starter offers Class 20 thermal overload relays that provide robust protection against overheating, ensuring safe and reliable operation of the motor. The trip-free construction allows the overload relay to trip even if the reset lever is blocked or in the reset position, preventing potential hazards caused by unexpected machine stops. Manual push-to-test and visible trip indicator provide easy monitoring and maintenance. The Spring-assisted gravity dropout extinguishes any arcing upon de-energizing for added safety. With a 9A rating and UL/CSA certification, this motor starter is perfect for various commercial and industrial applications that require controlled starting and stopping of motors.
Top product features:
- Overload relay for enhanced safety and thermal protection
- Trip-free construction to prevent unexpected machine stops
- Normally open holding circuit contact for added control
Top product applications:
- Starting and stopping motors in industrial and commercial environments
- Controlling the operation of motors in machinery or equipment
- Protecting motors from overheating and prolonged use in hazardous conditions
Technical Specifications
- Item Magnetic Motor Starter
- NEMA Size 00
- Amps AC 9 A
- Coil Volts 120V AC
- Enclosure NEMA Rating No Enclosure
- Action Nonreversing
- Number of Poles 2
- HP @ 1 Phase - 120V 1/3 hp
- HP @ 1 Phase - 230V 1 hp
- Height 4.34 in
- Width 3.22 in
- Depth 4.22 in
- Standards UL Listed/CSA Certified
- Includes Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism
- Starter Type NEMA
- Hz 50/60
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8536SAO11V02S
- MPN: 8536SAO11V02S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536504000
- GDS Category Name: Magnetic Starters with Thermal Overload
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121521
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Motor starter controls
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
