NEMA Magnetic Contactr 18A 208VAC NEMA 0 MPN:8502SBO2V08
SKU
226-CXG-2MMZ7

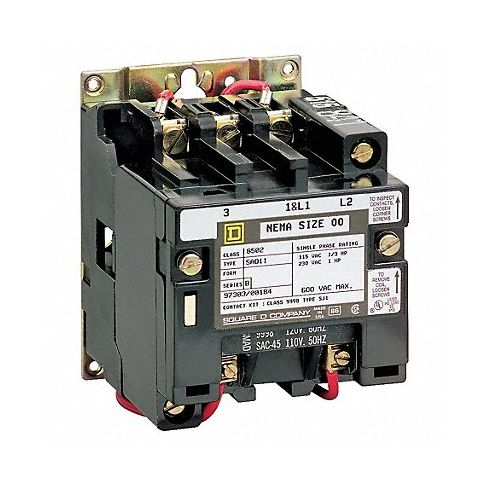

NEMA Magnetic Contactr 18A 208VAC NEMA 0
The NEMA Magnetic Contactor is an essential component for controlling and switching power loads in various industrial and commercial applications. Designed to operate at a maximum voltage of 600 Volts, this contactor provides enhanced safety and reliability by offering overload protection when used with electric motors, transformers, capacitors, or heating loads. The Type S Contactors are specifically engineered for use in contruction, infrastructure, oil and gas, transportation, and other industries that require robust and durable power management solutions. With its NEMA 0 size and full load amps of 18A, this contactor is the perfect solution for demanding applications requiring reliable control and switching capabilities.
Top product features:
- NEMA rating for use in industrial and commercial environments
- High voltage capacity of 600 Volts maximum
- Capacity to handle full load amps of 18 Amps
Top product applications:
- Heating loads
- Capacitors
- Transformers
Class 8502 Type S magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is separately provided. Normally open holding-circuit contact for 3-wire control is provided as standard. Type S contactors are designed for operation at 600 Volts maximum. Used with heating loads, capacitors, transformers, electric motors, and other power loads where overload protection is provided separately. Commonly used in contruction, infrastructure, oil and gas, transportation and other applications. In accordance with NEMA standards.
Technical Specifications
- Item NEMA Magnetic Contactor
- Full Load Amps 18 A
- Coil Volts 208V AC
- NEMA Contactor Size 0
- Reversing No
- HP @ 3 Phase - 208V 3 hp
- HP @ 3 Phase - 240V 3 hp
- HP @ 3 Phase - 480V 5 hp
- HP @ 3 Phase - 575V 5 hp
- Number of Poles 3
- Enclosure NEMA Rating No Enclosure
- Hz 50/60
- Height 4.34 in
- Width 3.22 in
- Depth 4.22 in
- Frame / Series / Class / Code Class 8502
- Standards CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8502SBO2V08
- MPN: 8502SBO2V08
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490065
- GDS Category Name: NEMA Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
