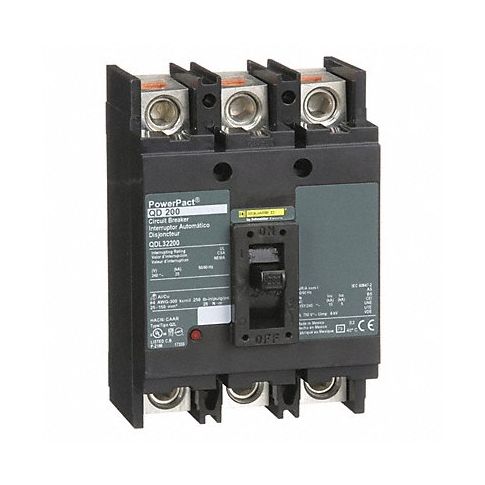

Circuit Breaker 200A 3P 240VAC QD MPN:QDL32200
Free Shipping
In Stock
The Square D Q-frame molded case circuit breaker offers optimal protection for devices from electrical damage in OEM commercial and industrial applications. With a capacity of up to 200A and an AC voltage rating of 240V, it provides dependable current interrupt capabilities. The series QD configuration allows for easy installation, while the product's mechanical construction ensures maximum durability. Applications for this versatile circuit breaker span from power tools to machinery, making it the ideal choice for various industries that require reliable protection and control of their electrical systems. By opting for a Q-frame Square D molded case circuit breaker, users can experience peace of mind in knowing they are safeguarding their equipment while minimizing costly repairs or downtime.
Top product features:
- Molded case for maximum durability
- Rated up to 200A and 240VAC
- AC voltage rating suitable for various industries
Top product applications:
- OEM commercial and industrial applications
- Protection for devices from electrical damage
- Control of electrical systems in various industries
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 200 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 25kA at 240V AC
- Series QD
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 250A/QD
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QDL32200
- MPN: QDL32200
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
