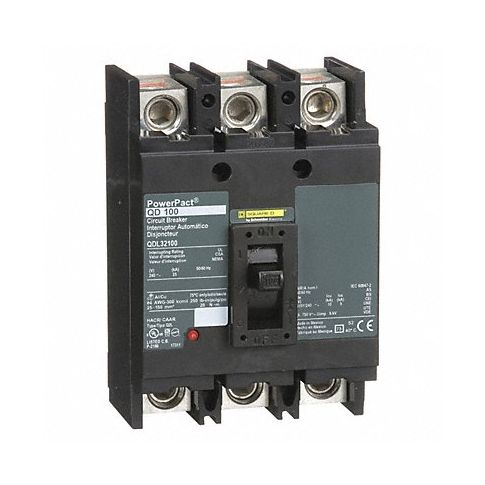

Circuit Breaker 100A 3P 240VAC QD MPN:QDL32100
Free Shipping
In Stock
The Square D QD Series molded case circuit breaker is designed for commercial and industrial applications that require powerful protection from electrical overloads and short circuits. With a capacity of 100 amps, this breaker can handle high-power devices and circuits with ease. Its compact design allows for easy installation in tight spaces, while its QD series compatibility makes it compatible with standard QD devices for seamless integration. The breaker's advanced mechanisms and trip devices ensure fast response times and reliable protection against electrical hazards. Ideal for use in industrial settings such as manufacturing facilities or commercial buildings, this circuit breaker is the perfect choice for any environment where power and safety are top priorities.
Top product features:
- QD Series Compatibility Makes it compatible with standard QD devices for seamless integration
- Advanced Trip Devices Ensures fast response times and reliable protection against electrical hazards
- Compact Design Allows for easy installation in tight spaces
Top product applications:
- Industrial and Commercial Buildings Used to protect devices from electrical damage in industrial settings such as manufacturing facilities or commercial buildings
- Power Distribution Systems Ideal for use in power distribution systems that require powerful protection against electrical hazards
- Heavy Duty Equipment Perfect for protecting heavy-duty equipment from electrical surges and overloads
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 100 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 25kA at 240V AC
- Series QD
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating Not Rated
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 250A/QD
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QDL32100
- MPN: QDL32100
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:27pm UTC Category: Distribution
