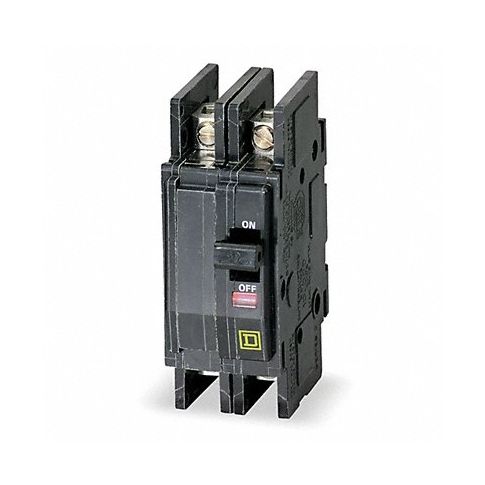

Circuit Breaker 15A 120/240V 2P MPN:QOU215VH
Free Shipping
In Stock
Introducing the QOU series miniature circuit breakers - perfect for panelboards, load centers or anywhere you need to free up space. With the ability to interrupt currents in the event of an overload and switch on both AC and DC electrical systems, these mini circuit breakers are versatile and reliable. Engineered with a high interrupting capacity, these 15A 120/240V 2P circuit breakers can handle heavy loads without any issues. Easy to install, they can be surface-, flush-, or DIN rail-mounted and are ideal for various applications such as residential, commercial, or industrial settings. Experience the freedom of a clutter-free electrical setup with the QOU series mini circuit breakers from Square D - the go-to solution for space-saving and efficient power management.
Top product features:
- High interrupting capacity
- AC and DC electrical systems compatibility
- Versatile installation options
Top product applications:
- Residential electrical systems protection
- Commercial building panelboards and load centers
- Industrial equipment control and power management
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 15 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Surface/DIN Rail
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOU
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Air Conditioning and Refrigeration Equipment, Heating
- Terminal Connection Slotted Box Lug (Reversible Line and Load)
- Frame Size 100A/QOU
- Length 4.05 in
- Width 1.5 in
- Depth 2.95 in
- Min. Wire Size 14 AWG
- Max. Wire Size 2 AWG
- Standards CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOU215VH
- MPN: QOU215VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:27pm UTC Category: Distribution
