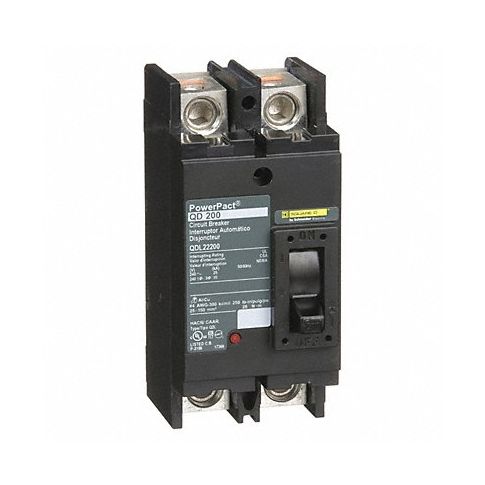

Circuit Breaker 200A 2P 240VAC QD MPN:QDL22200
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2JXA1
Circuit Breaker 200A 2P 240VAC QD
Introducing our durable and reliable Square D QD molded case circuit breaker with a 200A rating, designed for high-voltage electrical protection in commercial and industrial settings. These heavy-duty breakers are perfect for applications that require enhanced safety measures to prevent damage from excessive currents. With their easy-to-use trip devices and advanced design, these breakers offer seamless operation and provide a level of performance you can count on. Whether your project requires residential or commercial circuit protection, our Square D QD molded case circuit breaker is the solution that meets all your needs. Choose the ultimate in electrical safety today!
Top product features:
- High-voltage protection
- Molded case construction
- Easy-to-use trip devices
Top product applications:
- Residential electrical protection
- Commercial building electrical protection
- Industrial electrical protection
Q-frame Square D molded case circuit breakers are rated up to 250A and 240VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in OEM commercial and industrial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 200 A
- AC Voltage Rating 240V AC
- Max. AIR Rating 25kA at 240V AC
- Series QD
- High Amp Trip Setting 2,400 A
- Low Amp Trip Setting 1,200 A
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating Not Rated
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 1
- Instantaneous Trip Fixed
- Phase Connection Not Applicable
- Frame Size 250A/QD
- Circuit Breaker Mounting Style Free Standing
- Height 6.47 in
- Width 4.5 in
- Depth 3.93 in
- Min. Wire Size 4 AWG
- Max. Wire Size 300 MCM
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QDL22200
- MPN: QDL22200
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
