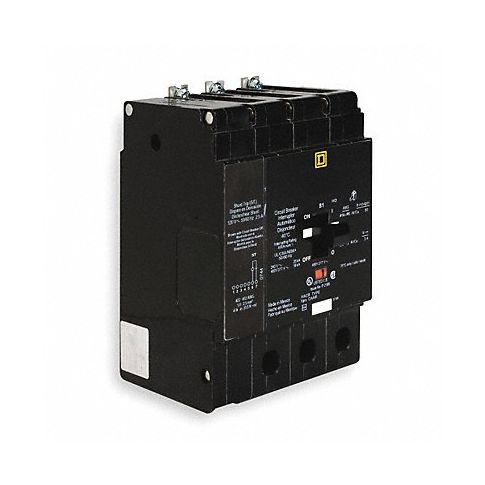

Circuit Breaker 90A Bolt On 277/480V 3P MPN:EDB34090SA
Introducing the Circuit Breaker 90A Bolt On 277/480V 3P from Square D, designed for industrial and commercial environments where stable circuit protection is essential. These miniature circuit breakers are bolted into place, providing a more secure solution compared to plug-in or unit-mount options. Engineered with EBD and EGB technology, they detect low-level faults and interrupt currents to prevent damage to electrical equipment. With a lug orientation and straight-in wiring through bus bars, these circuit breakers eliminate the need for pigtailing wires and promote an organized load center. Ideal for use in NF panelboards, their versatile three-pole design makes them suitable for various applications across various industries, ensuring reliable protection and control of electrical systems. Choose the Square D Circuit Breaker 90A Bolt On 277/480V 3P for your next project and enjoy peace of mind knowing that you have a high-quality, trusted solution in place.
Top product features:
- Stable design for NF panelboards
- EBD and EGB technology for fault detection and interruption
- Lug orientation for straight-in wiring through bus bars
Top product applications:
- Use in NF panelboards for stable circuit protection in industrial and commercial environments
- Interrupt low-level faults in electrical circuits
- Enhance organization and simplify wiring processes through bus bars
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 90 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Three
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 3.92 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB34090SA
- MPN: EDB34090SA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
