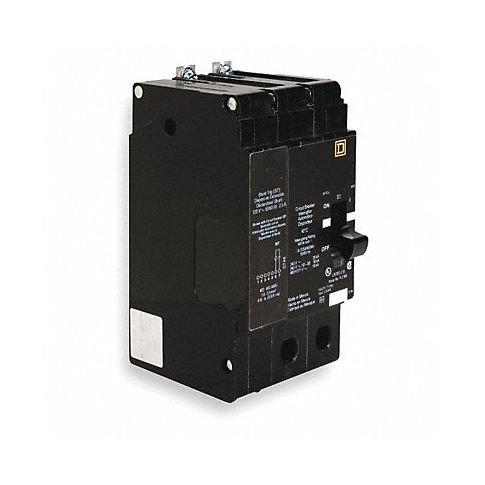

Circuit Breaker 50A Bolt On 277/480V 2P MPN:EDB24050SA
Free Shipping
In Stock
The Square D Circuit Breaker 50A Bolt On 277/480V 2P is an ideal solution for electrical systems requiring robust protection against low-level faults. This miniature circuit breaker is bolted into place in NF panelboards, providing increased stability compared to plug-in or unit-mount circuit breakers. The product's lug orientation allows for straight-in wiring through bus bars, eliminating the need for pigtail wires and enhancing overall organization in the load center. The Circuit Breaker 50A Bolt On features a shunt trip mechanism that can be quickly activated to interrupt currents upon detection of faults, making it suitable for use in applications requiring reliable circuit interruption capabilities. Its 277/480V AC voltage rating and two pole configuration make it suitable for a wide range of electrical systems. With the Square D Circuit Breaker 50A Bolt On 277/480V 2P, you can ensure optimal protection and performance in your electrical installations.
Top product features:
- Bolt On construction for increased stability
- Lug orientation for straight-in wiring through bus bars
- Shunt trip mechanism for quick circuit interruption
Top product applications:
- Industrial and commercial electrical systems
- Power distribution in panelboards
- Electrical protection for motors, transformers, and other equipment
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 277/480V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Toggle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NF
- Phase Single
- Series EDB
- Max. AIR Rating 18kA at 277/480V AC
- For Use With Square D NF Panelboards
- Terminal Connection Lug
- Frame Size 125A/EDB
- Length 5.66 in
- Width 2.94 in
- Depth 4.05 in
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 2 AWG
- Standards cULus
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: EDB24050SA
- MPN: EDB24050SA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:27pm UTC Category: Distribution
