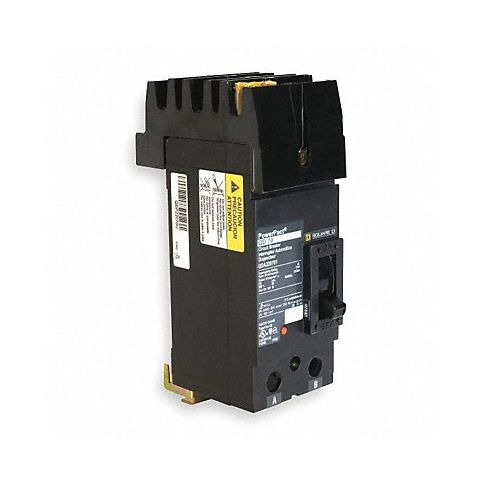

Circuit Breaker 125A 2P 240VAC QD MPN:QDA221252

These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 125 A
• AC Voltage Rating 240V AC
• Max. AIR Rating 25kA at 240V AC
• For Use With I Line Panelboards
• Series QD
• High Amp Trip Setting 2,400 A
• Low Amp Trip Setting 1,200 A
• Circuit Breaker Type Standard
• Number of Poles 2
• DC Voltage Rating Not Rated
• Terminal Connection Lug
• Trip Type Thermal Magnetic
• Phase 1
• Instantaneous Trip Fixed
• Phase Connection AC
• Frame Size 250A/QD
• Circuit Breaker Mounting Style I-Line
• Height 6.47 in
• Width 3.0 in
• Depth 3.93 in
• Min. Wire Size 4 AWG
• Max. Wire Size 300 MCM
• Circuit Breaker Actuator Toggle
• Standards CE Marked, CSA Certified, IEC, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: QDA221252
• MPN: QDA221252

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
