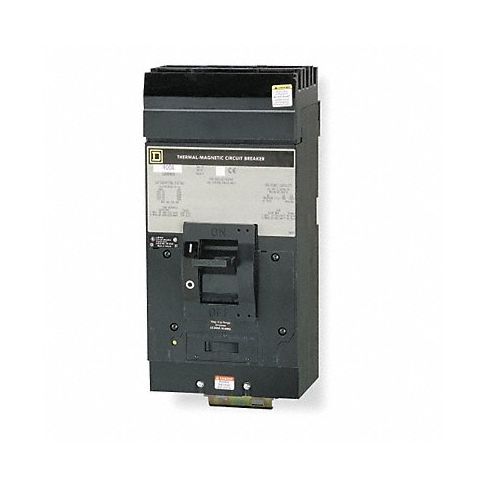

Circuit Breaker 125A 3P 600VAC LA MPN:LA36125

These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.

Technical Specifications

• Item Molded Case Circuit Breaker
• Amps 125 A
• AC Voltage Rating 600V AC
• Max. AIR Rating 42kA at 120/240V AC
• For Use With I Line Panelboards
• Series LA
• High Amp Trip Setting 1,250 A
• Low Amp Trip Setting 625 A
• Circuit Breaker Type Standard
• Number of Poles 3
• DC Voltage Rating 250V DC
• Terminal Connection Lug
• Trip Type Thermal Magnetic
• Phase 3
• Instantaneous Trip Adjustable
• Phase Connection ABC
• Frame Size 400A/LA
• Circuit Breaker Mounting Style I-Line
• Height 11.0 in
• Width 6.0 in
• Depth 5.84 in
• Min. Wire Size 1/0 AWG
• Max. Wire Size 250 MCM, 600 MCM
• Circuit Breaker Actuator Toggle
• Standards CSA, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: LA36125
• MPN: LA36125

Label Details

• Hazardous Material: Y
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Molded Case Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
