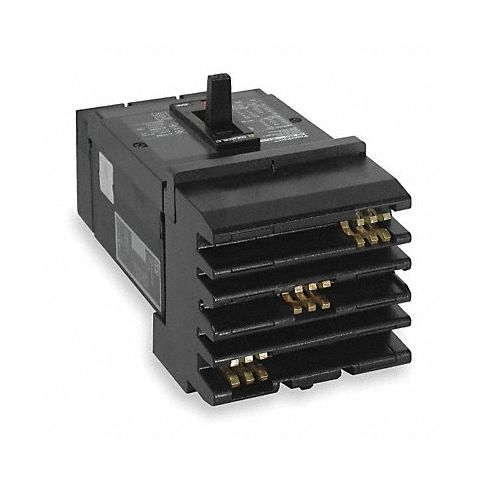

Circuit Breaker 150A 3P 600VAC JG MPN:JGA36150
SKU
226-CXG-2GNY4
Circuit Breaker 150A 3P 600VAC JG
Square D's J-frame molded case circuit breakers provide reliable protection against electrical overload in industrial and commercial applications. With ratings up to 250A and 600VAC, these robust breakers are ideal for construction, oil and gas, marine, and other heavy-duty environments. Featuring current-carrying parts, mechanisms, and trip devices all contained within a molded case, J-frame circuit breakers offer convenience and durability. Their maximum AIR rating of 25kA at 240V AC ensures reliable, robust protection against even the most extreme electrical currents. Trust Square D's J-frame circuit breakers to keep your operation running smoothly, safely, and efficiently.
Top product features:
- J-frame design for convenient use in various applications
- Maximum AIR rating of 25kA at 240V AC for robust protection
- Molded case construction for durability and ease of maintenance
Top product applications:
- Construction sites for controlling power flows to electrical equipment
- Oil and gas facilities to protect equipment from power surges
- Marine environments for controlling power to onboard systems
J-frame Square D molded case circuit breakers are rated up to 250A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, oil and gas, marine, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 150 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 25kA at 240V AC
- For Use With I Line Panelboards
- Series JG
- High Amp Trip Setting 1,500 A
- Low Amp Trip Setting 750 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 500V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Adjustable
- Phase Connection ABC
- Frame Size 250A/JG
- Circuit Breaker Mounting Style I-Line
- Height 11.48 in
- Width 4.48 in
- Depth 5.87 in
- Min. Wire Size 4 AWG
- Max. Wire Size 4 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Min. Operating Temp. 104 Degrees F
- Standards CCC, CE, CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: JGA36150
- MPN: JGA36150
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
