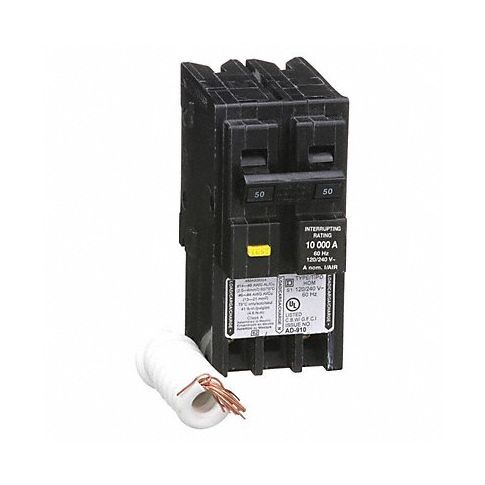

Circuit Breaker 50A Plug In 120/240V 2P MPN:HOM250GFI
Free Shipping
In Stock
Introducing Square D's Miniature Circuit Breaker with Ground Fault Interruption (GFI) Protection - a vital safety device designed to protect electrical circuits from ground fault currents. With its AC voltage rating of 120/240V and an amperage capacity of 50A, this circuit breaker is ideal for use in both indoor and outdoor applications where there is a risk of exposed wires or moisture damage. Its Plug-in design makes installation easy without the need for DIN rails or bolts, making it perfect for use in load centers. The built-in GFI feature allows for early detection and interrupts of low-level fault currents to avoid potential hazards such as shocks or electrical fires. With its compact size and easy installation, Square D's Miniature Circuit Breaker is the perfect solution to protect your electrical circuits from ground fault currents.
Top product features:
- Plug-in design for easy installation
- GFI protection against ground fault currents
- AC voltage rating of 120/240V
Top product applications:
- Protect electrical circuits from ground fault currents in indoor and outdoor settings
- Safeguard against electrical fires due to exposed wires or other potential hazards
- Provide easy installation of circuit breakers without the need for DIN rails or bolts
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA)
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series HOM
- Phase Single
- Series HOM
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Homeline Load Center
- Terminal Connection Screw Clamp
- Frame Size 100A/HOM
- Length 3.13 in
- Width 2 in
- Depth 2.98 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Standards CSA Certified, HACR, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HOM250GFI
- MPN: HOM250GFI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
