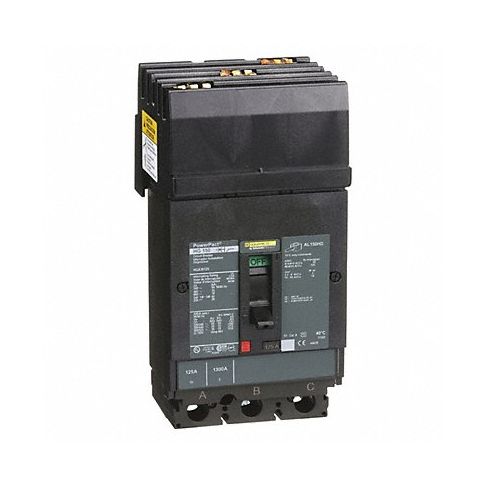

Circuit Breaker 125A 3P 600VAC HG MPN:HGA36125
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GNT3
Circuit Breaker 125A 3P 600VAC HG
Introducing Square D's Circuit Breaker - an essential electrical component designed for commercial and residential settings. This versatile circuit breaker boasts a rating of up to 125A and can handle voltages as high as 600V AC, making it suitable for a wide range of applications. Its molded case design ensures maximum durability and protection against harsh conditions. Use this product to interrupt excessive current flows and protect devices from electrical damage in control panels, OEM equipment, and more. With its 65kA max. AIR rating at 240V AC, you can trust Square D's Circuit Breaker to provide reliable and robust performance. Get yours today and experience the benefits of Square D's superior quality and durability!
Top product features:
- AC Voltage Rating: The circuit breaker can handle voltages as high as 600V AC.
- Max. AIR Rating: It has a max. AIR rating of 65kA at 240V AC for reliable and robust performance.
- Molded Case Design: The molded case design provides maximum durability and protection against harsh conditions.
Top product applications:
- Commercial and residential settings for controlling and protecting electrical devices from overcurrent damage.
- Industrial applications to regulate the flow of electricity in electrical distribution systems.
- OEM use in the production of new electrical equipment, where customized circuit breakers can be designed for specific uses.
These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 125 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 65kA at 240V AC
- For Use With I Line Panelboards
- Series HG
- High Amp Trip Setting 1,700 A
- Low Amp Trip Setting 900 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 150A/HG
- Circuit Breaker Mounting Style I-Line
- Height 9.73 in
- Width 4.48 in
- Depth 4.8 in
- Min. Wire Size 14 AWG
- Max. Wire Size 3 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CE, CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HGA36125
- MPN: HGA36125
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CONBF3M
Product info last updated on January 19, 2024 4:53pm UTC Category: Distribution
