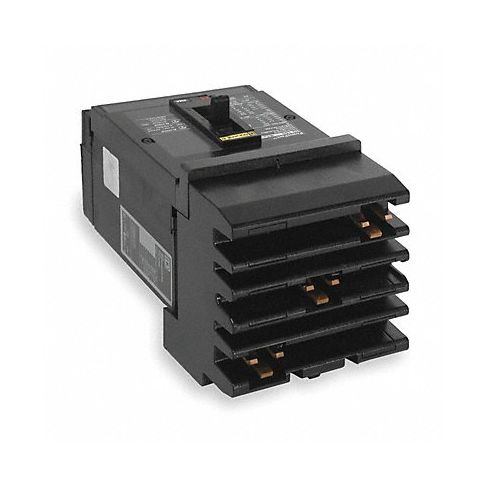

Circuit Breaker 110A 3P 600VAC HG MPN:HGA36110
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GNR9
Circuit Breaker 110A 3P 600VAC HG
Introducing our Molded Case Circuit Breaker from Square D, perfect for commercial and industrial settings looking to safeguard their electrical systems! Rated at 110A and designed for use with voltages up to 600VAC/250VDC, these circuit breakers provide superior protection against current overloads. Their molded case design ensures durability while their ease of installation saves time and effort. Ideal for control panels, OEM equipment, and more, these circuit breakers are the perfect choice for businesses looking to keep their operations running smoothly. Don't settle for subpar electrical protection; choose Square D today!
Top product features:
- Rated for voltages up to 600VAC/250VDC
- Molded case design for durability
- Easy installation
Top product applications:
- Control panels for electrical systems management
- OEM equipment in various industries such as manufacturing, construction or transportation
- Electrical distribution equipment for power management in commercial buildings
These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 110 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 65kA at 240V AC
- For Use With I Line Panelboards
- Series HG
- High Amp Trip Setting 1,700 A
- Low Amp Trip Setting 900 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 150A/HG
- Circuit Breaker Mounting Style I-Line
- Height 9.73 in
- Width 4.48 in
- Depth 4.8 in
- Min. Wire Size 14 AWG
- Max. Wire Size 3 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CE, CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HGA36110
- MPN: HGA36110
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CONAULK
