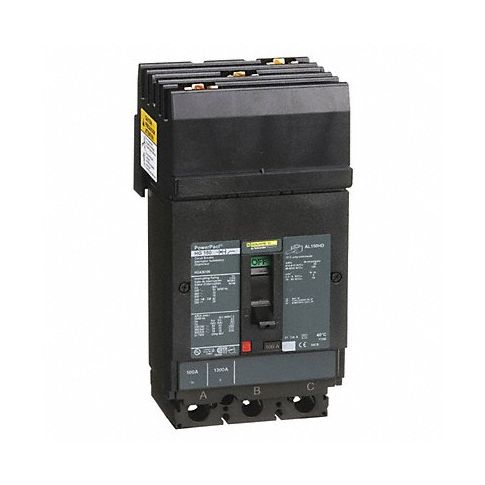

Circuit Breaker 100A 3P 600VAC HG MPN:HGA36100
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GNR6
Circuit Breaker 100A 3P 600VAC HG
Introducing Square D molded case circuit breakers for use in I-line panelboards! These compact circuit breakers offer powerful protection for control panels, OEM equipment, electrical distribution systems, and other industrial or commercial applications. With a maximum current rating of 125A and 347VAC/250VDC, these durable devices ensure reliable and efficient operation while minimizing the risk of damaging device components due to excessive currents. Their convenient molded case design allows for easy installation in any setting, making them an essential component of your electrical infrastructure. Protect your investments today with Square D molded case circuit breakers!
Top product features:
- UL489 listed for use in I-line panelboards: Ensures compliance and safety in electrical installations
- Current-carrying parts, mechanisms, and trip devices contained in a molded case: Provides durability and protection against damage from excessive currents
- Compact design: Saves space and allows for easy installation
Top product applications:
- Electrical distribution equipment in commercial and industrial settings to protect against electrical hazards and overload
- Control panels for machine automation and control systems to prevent damage from excessive currents and voltage fluctuations
- OEM equipment where compact and durable circuit breakers are required for use in control circuits or motor starting applications
These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 100 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 65kA at 240V AC
- For Use With I Line Panelboards
- Series HG
- High Amp Trip Setting 1,700 A
- Low Amp Trip Setting 900 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 150A/HG
- Circuit Breaker Mounting Style I-Line
- Height 9.73 in
- Width 4.48 in
- Depth 4.8 in
- Min. Wire Size 14 AWG
- Max. Wire Size 3 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CE, CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HGA36100
- MPN: HGA36100
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
