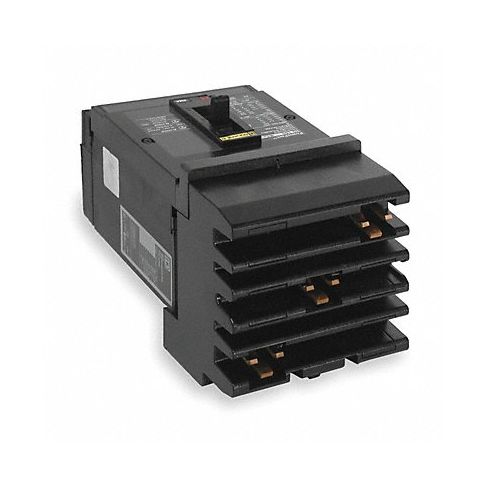

Circuit Breaker 70A 3P 600VAC HG MPN:HGA36070
Free Shipping
In Stock
Square D's Molded Case Circuit Breaker is designed for robust electrical protection in commercial and industrial settings. With a capacity up to 125A and an AC voltage rating of 600V, it provides reliable current interruption and overload protection for various applications. Featuring an easy-to-use plug-in design, this circuit breaker fits seamlessly into I-line panelboards without requiring tools. It also features a max AIR rating of 65kA at 240V AC, making it suitable for high current loads. Use Square D's Molded Case Circuit Breaker to safeguard your equipment and devices from electrical damage due to excessive current flow. Its versatile applications make it an ideal choice for control panels, OEM, electrical distribution equipment, and more in both industrial and commercial settings.
Top product features:
- Molded Case Design for Easy Installation and Durability
- AC Voltage Rating of 600V for Robust Protection
- Plug-in Design for Seamless Integration into I-Line Panelboards
Top product applications:
- Industrial and Commercial Electrical Systems for Control Panel Use
- OEM (Original Equipment Manufacturer) in Product Assembly
- Protection of Devices from Electrical Damage Due to Excessive Current Flows
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 70 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 65kA at 240V AC
- For Use With I Line Panelboards
- Series HG
- High Amp Trip Setting 1,450 A
- Low Amp Trip Setting 800 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Fixed
- Phase Connection ABC
- Frame Size 150A/HG
- Circuit Breaker Mounting Style I-Line
- Height 9.73 in
- Width 4.48 in
- Depth 4.8 in
- Min. Wire Size 14 AWG
- Max. Wire Size 3 AWG
- Circuit Breaker Actuator Toggle
- Max. Operating Temp. 104 Degrees F
- Standards CE, CSA, IEC, UL listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: HGA36070
- MPN: HGA36070
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
