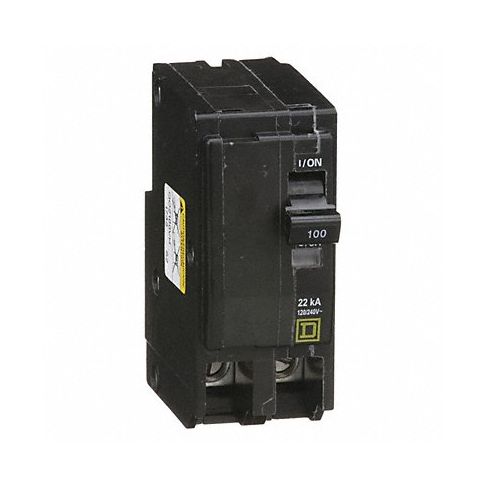

Circuit Breaker 100A Plug In 120/240V 2P MPN:QO2100VH
Free Shipping
In Stock
Looking for a convenient and time-saving solution to protect your electrical systems? Look no further than Square D's QO series miniature circuit breakers! These reliable and easy-to-install devices plug into place in NQOD and NQ panelboards, making them an ideal choice for any electrical installation. With their high interrupting capacity, these breakers are designed to protect your equipment from low-level faults, providing you with peace of mind that your system is safe and secure. Plus, the easy connectivity through bus bars means less time spent wiring and more time getting your project done. So whether you're working in a commercial or residential setting, these circuit breakers are an excellent choice for any application where safety and reliability are paramount.
Top product features:
- Plugs into place in NQOD and NQ panelboards for easy installation.
- Interrupts currents when low-level faults are detected in the circuit.
- Connects to power supply through bus bars for convenient wiring.
Top product applications:
- Residential or commercial electrical systems where high interrupting capacity is required.
- In situations where space is limited and traditional bolt-on breakers cannot be used.
- In scenarios where bus bars are already installed as a power supply method.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 22kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 1.5 in
- Depth 2.91 in
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO2100VH
- MPN: QO2100VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
