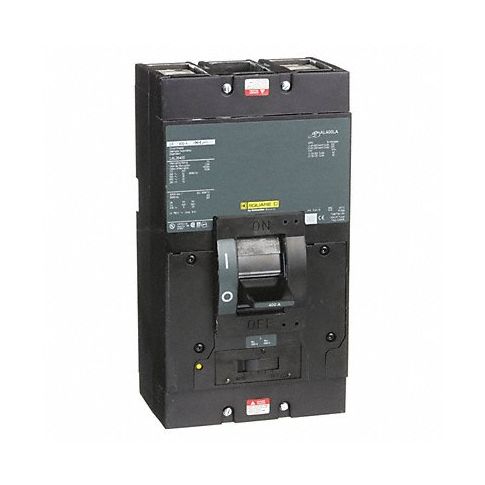

Circuit Breaker 400A 2P 600VAC LAL MPN:LAL26400
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GMD8
Circuit Breaker 400A 2P 600VAC LAL
Looking for a robust circuit breaker that can withstand harsh industrial environments? Look no further than Square D's molded case circuit breaker! Rated up to 400A and 600VAC, these breakers are designed to protect your devices from electrical damage by interrupting excessive current flows. Their compact, durable design makes them ideal for use in construction, control equipment panels, mining, and other demanding industrial and commercial applications. Plus, their built-in trip devices ensure reliable protection against fault currents. Choose Square D's molded case circuit breaker for trusted, reliable circuit protection in your electrical systems.
Top product features:
- Rated for industrial and commercial applications
- Compact molded case design
- Built-in trip devices for reliable protection
Top product applications:
- Use in industrial settings such as manufacturing plants, factories, and mines
- Protection for electrical equipment in commercial buildings such as office buildings, hotels, and hospitals
- Use in outdoor settings like streetlights and traffic signal systems
LA-, LH-, and Q4-frame Square D molded case circuit breakers are rated up to 400A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, control equipment panels, mining, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 400 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 42kA at 240V AC
- For Use With Busway Plug-In Units, Combination Starters, Industrial Enclosures, Motor Control Centers, Panelboards, Switchboards
- Series LAL
- High Amp Trip Setting 4,000 A
- Low Amp Trip Setting 2,000 A
- Circuit Breaker Type Standard
- Number of Poles 2
- DC Voltage Rating 250V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 1
- Instantaneous Trip Adjustable
- Phase Connection Not Applicable
- Frame Size 400A/LA
- Circuit Breaker Mounting Style Free Standing
- Height 11.0 in
- Width 6.0 in
- Depth 5.84 in
- Min. Wire Size 1/0 AWG
- Max. Wire Size 250 MCM, 600 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: LAL26400
- MPN: LAL26400
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
