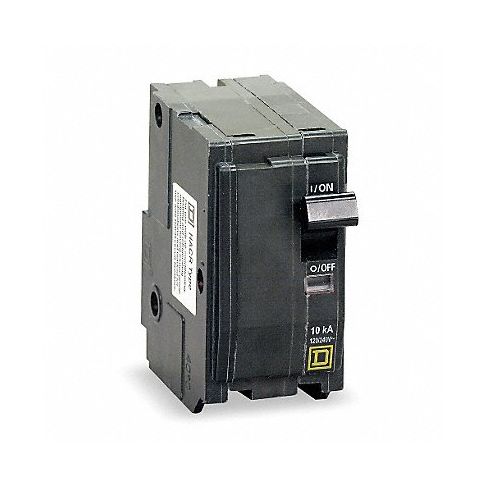

Circuit Breaker 200A Plug In 120/240V 2P MPN:QO2200VH
Free Shipping
In Stock
Introducing the QO series miniature circuit breakers from Square D - the ideal solution for all your electrical protection needs! These versatile breakers plug into place in NQOD and NQ panelboards, making installation faster and easier than bolt-on and unit-mount breakers. The 200A capacity makes it perfect for heavy-duty applications, while the high interrupting capacity ensures reliable protection against low-level faults. Connect to power through bus bars for a cleaner, organized load center, and enjoy the convenience of plug-in installation with no need for DIN rails or bolts. The QO series is perfect for use in commercial and industrial settings where reliable electrical protection is essential. Trust Square D's quality and experience to keep your electrical system running smoothly and safely. Order your QO series miniature circuit breakers today!
Top product features:
- Plug-in installation: No need for DIN rails or bolts easier to install than bolt-on and unit-mount breakers.
- High interrupting capacity: Reliable protection against low-level faults in the circuit.
- Connects to power through bus bars: Eliminates the need to pigtail wires, helps organize the panelboard or load center.
Top product applications:
- Industrial and commercial settings where high interrupting capacity is required The QO series miniature circuit breakers can be used in various industrial and commercial settings to ensure reliable protection against low-level faults in the circuit.
- In panelboards or load centers where bus bars are already installed The ability to connect directly to power through bus bars makes these circuit breakers a perfect fit for panelboards or load centers that already have bus bars installed.
- As part of an overall electrical protection system in a facility These circuit breakers can be used as part of an integrated electrical protection system in a facility, providing additional layers of protection beyond traditional fuses or other overcurrent protection devices.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 200 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 22kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 1.5 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO2200VH
- MPN: QO2200VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:26pm UTC Category: Distribution
