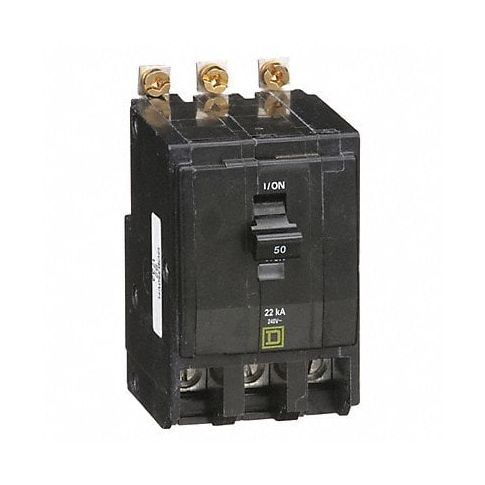

Circuit Breaker 50A Bolt On 120/240V 3P MPN:QOB350VH
Free Shipping
In Stock
Introducing the Square D QOB Circuit Breaker - the ideal solution for enhancing electrical safety in your home or office. With a robust design that ensures stability, this 50A, 120/240V, 3P circuit breaker is perfect for use in NQOD and NQ panelboards or interiors. Its unique ability to interrupt currents when low-level faults are detected offers peace of mind by preventing potential damage to electrical systems. Its lug orientation makes wiring through bus bars a breeze, eliminating the need for pigtail wires and simplifying the load center. With a high interrupting capacity and amperage rating suitable for heavy-duty applications, this circuit breaker is a must-have for anyone looking to safeguard their electrical systems. Don't take chances with subpar protection - choose Square D QOB Circuit Breaker today!
Top product features:
- Bolt-on design for increased stability
- High interrupting capacity to prevent damage
- Lug orientation for easy wiring through bus bars
Top product applications:
- Use in NQOD and NQ panelboards for increased stability
- Circuit protection in heavy-duty applications
- Commercial or industrial settings requiring a high interrupting capacity
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 50 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB350VH
- MPN: QOB350VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
