Circuit Breaker 25A Bolt On 120/240V 3P MPN:QOB325VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GLL3

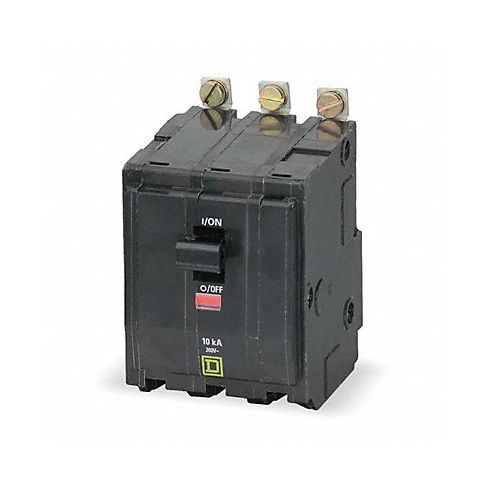

Circuit Breaker 25A Bolt On 120/240V 3P
Introducing Circuit Breaker 25A Bolt On 120/240V 3P from Square D - the ultimate solution for your electrical protection needs! Designed to withstand high interrupting capacities, these miniature circuit breakers are perfect for bolted panelboards and load centers. With a stable installation and the ability to detect low-level faults in the circuit, you can rest assured knowing your circuits are protected against damages. The lug orientation allows straight-in wiring through bus bars, eliminating the need for pigtailing wires and creating an organized look for your load center. Save time and effort while ensuring optimal safety with Square D's Circuit Breaker 25A Bolt On 120/240V 3P - the perfect addition to any electrical system!
Top product features:
- Stable installation for improved safety and security
- High interrupting capacity for better protection against electrical damages
- Lug orientation for organized and easier wiring in load centers
Top product applications:
- Protect electrical circuits from damages caused by low-level faults in panelboards and load centers
- Install into stable and organized electrical systems to prevent wire pigtailing and ensure safety
- Use for three-phase power distribution in commercial and industrial settings
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 25 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Pressure Plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB325VH
- MPN: QOB325VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
