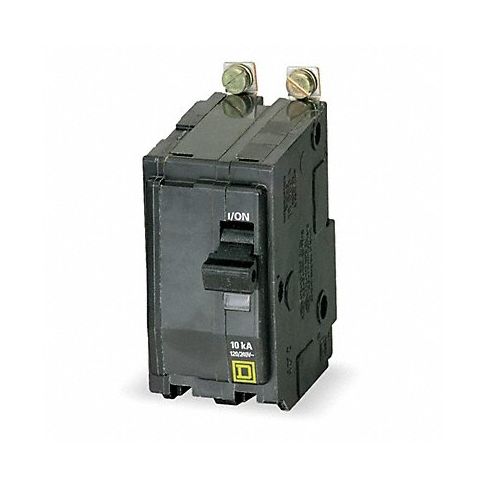

Circuit Breaker 90A Bolt On 120/240V 2P MPN:QOB290VH
Free Shipping
In Stock
Introducing the Square D Circuit Breaker 90A Bolt On 120/240V 2P - a revolutionary solution for circuit protection in your electrical system. With its bolt-on design, these miniature circuit breakers are more stable than plug-in or unit-mount circuit breakers and provide dependable current interruption in the event of low-level faults. The lug orientation allows for straight-in wiring through bus bars, eliminating the need to pigtail wires and helping organize your load center. Ideal for use in panelboards and load centers, these circuit breakers offer high interrupting capacity and 90 A of protection in a compact package. Say goodbye to flimsy, unstable circuit breakers - with Square D's new QOB series, you can enjoy the peace of mind that comes with true reliability and safety. Upgrade your electrical system today!
Top product features:
- Bolt-on design for stability and reliability
- High interrupting capacity for dependable current interruption
- Lug orientation for easy wiring and organization
Top product applications:
- Panelboards and load centers in commercial and industrial settings
- Electrical systems that require dependable circuit protection
- Multi-phase electrical installations requiring bolt-on circuit breakers
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 90 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB290VH
- MPN: QOB290VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
