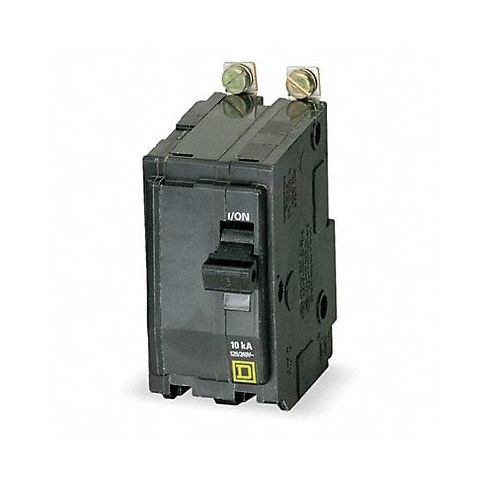

Circuit Breaker 70A Bolt On 120/240V 2P MPN:QOB270VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-2glj4
Circuit Breaker 70A Bolt On 120/240V 2P
Introducing our premium Circuit Breaker 70A Bolt On 120/240V 2P from Square D - designed for reliable electrical protection in various commercial and residential settings. With its 70-amp rating, this miniature circuit breaker offers high interrupting capacity, making it ideal for circuits that demand continuous protection against low-level faults. The bolt-on design ensures stability and durability in NQOD and NQ panelboards or interiors, while the lug orientation allows for direct wiring through bus bars for better organization. Invest in Circuit Breaker 70A Bolt On today, and enjoy peace of mind knowing that your electrical system is safely and efficiently managed!
Top product features:
- High interrupting capacity
- Bolt-on design for stability and durability
- Lug orientation for direct wiring through bus bars
Top product applications:
- Electrical panel circuit protection in residential and commercial buildings
- Main electrical distribution in an office building or shopping mall
- Safety device for controlling power flow in a workshop or garage
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 70 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB270VH
- MPN: QOB270VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
