Circuit Breaker 40A Bolt On 120/240V 2P MPN:QOB240HID
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GLG9

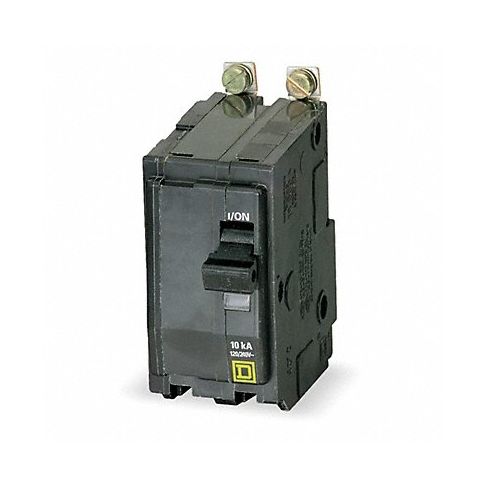

Circuit Breaker 40A Bolt On 120/240V 2P
Keep your electrical circuits safe and secure with our Circuit Breaker 40A Bolt On 120/240V 2P from Square D. Designed for miniature circuit breaker panels, these QOB series circuit breakers are perfect for residential or commercial applications. With a high intensity discharge, they provide maximum protection against electrical faults and low-level currents. Bolted into place for stability, these circuit breakers come with lug orientations to allow easy wiring through bus bars. Their space-saving design makes them ideal for any load center or panelboard installation. Experience the peace of mind that comes with knowing your electrical system is protected by this reliable and durable Square D circuit breaker.
Top product features:
- Bolt On Design Provides stability and security to miniature circuit breakers
- High Intensity Discharge Offers maximum protection against electrical faults
- Lug Orientation Allows for easy wiring through bus bars and helps organize the load center
Top product applications:
- Residential panelboards provides stable and secure circuit breakers in miniature form for homes
- Commercial load centers offers maximum protection against electrical faults while organizing wires through bus bars
- Lighting systems allows easy wiring and safe voltage control in indoor and outdoor lighting circuits
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 40 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Intensity Discharge
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB240HID
- MPN: QOB240HID
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
