Circuit Breaker 30A Bolt On 120/240V 2P MPN:QOB230VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2GLG6

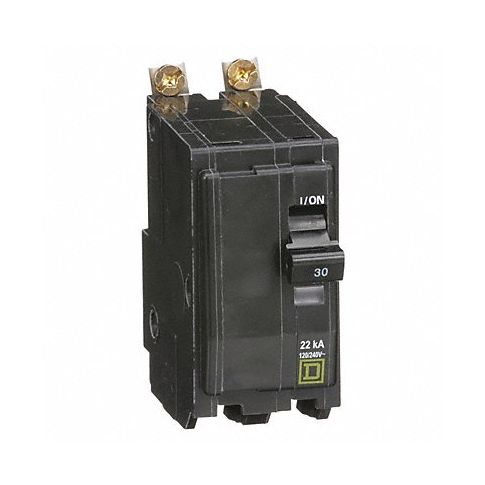

Circuit Breaker 30A Bolt On 120/240V 2P
Protect your electrical systems from short circuits and overloads with our durable Square D Circuit Breaker 30A Bolt On 120/240V 2P. Designed for stable installation in NQOD and NQ panelboards or interiors, these circuit breakers are ideal for use in a variety of electrical systems where high interrupting capacity is essential. With a lug orientation that allows for straight-in wiring through bus bars, these miniature circuit breakers save time by eliminating the need to pigtail wires and help organize your load center. Trust Square D for reliable protection for all your electrical needs!
Top product features:
- High Interrupting Capacity: Allows for efficient protection against short circuits and overloads
- Bolt-On Installation: Provides stability and secure installation in panelboards or interiors
- Lug Orientation: Facilitates straight-in wiring through bus bars, simplifying the process and organizing the load center.
Top product applications:
- Protection against short circuits and overloads in commercial, industrial, or residential settings.
- Used in panelboards or interiors for additional stability and secure installation.
- Suitable for various electrical systems that require high interrupting capacity circuit breakers to ensure efficient performance.
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Pressure Plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB230VH
- MPN: QOB230VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
