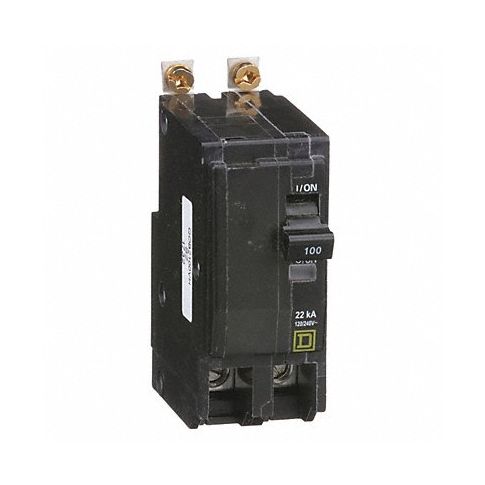

Circuit Breaker 100A Bolt On 120/240V 2P MPN:QOB2100VH
Free Shipping
In Stock
The Circuit Breaker 100A Bolt On 120/240V 2P from Square D is designed to provide reliable protection for electrical circuits in a variety of applications. These miniature circuit breakers are ideal for use in NQOD and NQ panelboards or interiors, offering more stability than plug-in or unit-mount circuit breakers. They feature high interrupting capacity to quickly detect and stop low-level faults in the circuit, ensuring optimal safety and performance. The lug orientation allows for straight-in wiring through bus bars, simplifying installation and helping to keep your load center organized. With a 100A rating and a 120/240V AC voltage range, this circuit breaker is suitable for a wide range of applications, including residential and commercial settings.
Top product features:
- Bolt On installation for increased stability compared to plug-in or unit-mount circuit breakers.
- High Interrupting Capacity to quickly detect and stop low-level faults in the circuit.
- Lug orientation for straight-in wiring through bus bars, simplifying installation and organization.
Top product applications:
- Residential electrical wiring systems for safety and protection from short circuits, overloads, and ground faults.
- Commercial buildings wiring systems to protect equipment and devices connected to multiple circuits.
- Industrial facilities with complex wiring systems requiring frequent switching of power sources and loads.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 100 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB2100VH
- MPN: QOB2100VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
