Circuit Breaker 30A Bolt On 120V 1P MPN:QOB130EPD
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-2gld5

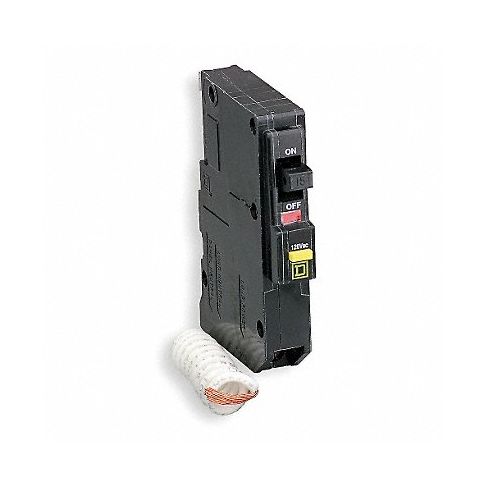

Circuit Breaker 30A Bolt On 120V 1P
Keep your electrical equipment safe with the Square D Circuit Breaker 30A Bolt On 120V 1P. Designed for ground fault equipment protection, this miniature circuit breaker provides advanced protection against electrical hazards in industrial settings. With its stable bolt-on design and ability to interrupt currents upon detecting low-level faults, you can rely on the QOB series to safeguard your electronics from damages. Its straight-in wiring feature allows for organized load centers and easy installation, making it a great addition to your electrical panel. Don't take chances with subpar protection - choose Square D Circuit Breaker 30A Bolt On 120V 1P for premium safety today!
Top product features:
- Bolt-on design for added stability in NQOD and NQ panelboards
- Advanced ground fault equipment protection to prevent electrical hazards
- Straight-in wiring through bus bars for organized load centers
Top product applications:
- Electrical panels in commercial and industrial settings for load distribution and protection from short circuits and overloads
- Residential wiring in homes or apartment buildings as part of a circuit breaker panel providing power to outlets and fixtures
- In retrofitting old electrical systems with updated components that require more advanced ground fault circuit interruption (GFCI) protection
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120V AC
- Circuit Breaker Type Ground Fault Equipment Protection
- Number of Poles 1
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series NQ, QO
- Phase Single
- Series QOB
- Max. AIR Rating 10kA at 120V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure Plate
- Frame Size 100A/QO
- Length 4.12 in
- Width 0.75 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB130EPD
- MPN: QOB130EPD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00A2V1YSO
Product info last updated on November 17, 2023 12:17pm UTC Category: Distribution
