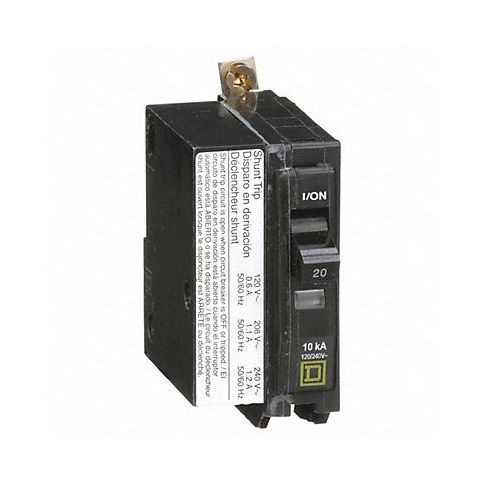

Circuit Breaker 20A Bolt On 120/240V 1P MPN:QOB1201021
Free Shipping
In Stock
Introducing the Square D Circuit Breaker 20A Bolt On 120/240V 1P, the perfect solution for your circuit protection needs. This miniature circuit breaker is designed for use in NQOD and NQ panelboards or interiors, providing a stable and secure installation compared to plug-in or unit-mount options. With its ability to interrupt currents upon detection of low-level faults, this circuit breaker ensures optimal safety and protection for your electrical system. Its lug orientation allows for straight-in wiring through bus bars, eliminating the need for pigtail wires and helping you organize your load center. Ideal for a wide range of applications, including residential, commercial, and industrial settings, the Square D Circuit Breaker 20A Bolt On 120/240V 1P offers unbeatable performance, durability, and reliability in circuit protection. Invest in this high-quality product today and experience the peace of mind that comes with knowing your electrical system is protected.
Top product features:
- Bolt On installation for added stability
- Interrupts currents upon low-level fault detection
- Lug orientation for straight-in wiring through bus bars
Top product applications:
- Home electrical circuit protection
- Commercial and industrial electrical panels
- Mobile electricity supply vehicles or constructions
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 1
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QOB
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Pressure Plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 1.5 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 14 AWG
- Max. Wire Size 8 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB1201021
- MPN: QOB1201021
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
