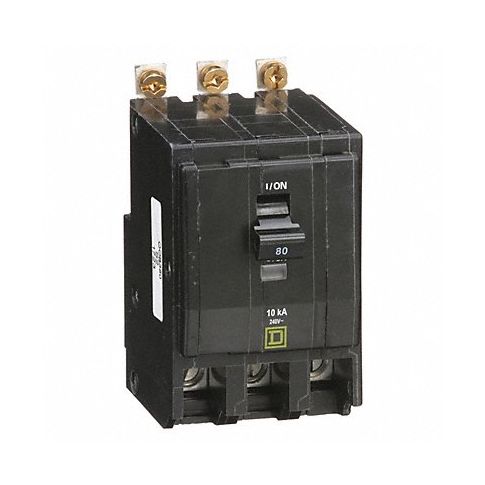

Circuit Breaker 80A Bolt On 120/240V 3P MPN:QOB380
Free Shipping
In Stock
Introducing the Circuit Breaker 80A Bolt On 120/240V 3P from Square D! This miniature circuit breaker is perfect for commercial and industrial settings where stable protection is essential. With a rating of 80 A, this device can handle medium load currents with ease. The AC voltage rating of 120/240V makes it versatile enough for most electrical systems. The standard circuit breaker type ensures reliable short-circuit protection. Plus, the bolted-in design provides added stability compared to plug-in or unit-mount options. It also has a lug orientation that allows for straight-in wiring through bus bars, eliminating the need for pigtailing wires and helping to organize your load center. Don't risk power disruptions due to low-level faults - invest in this dependable Square D circuit breaker today!
Top product features:
- Bolted-in design for added stability
- Lug orientation for straight-in wiring through bus bars
- Interrupts currents when low-level faults are detected
Top product applications:
- Commercial and industrial settings requiring stable power protection
- Panelboards or interior electrical systems that need secure circuit breakers
- Electrical systems that require protection against low-level faults
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 80 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 10kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.5 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 4 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB380
- MPN: QOB380
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
