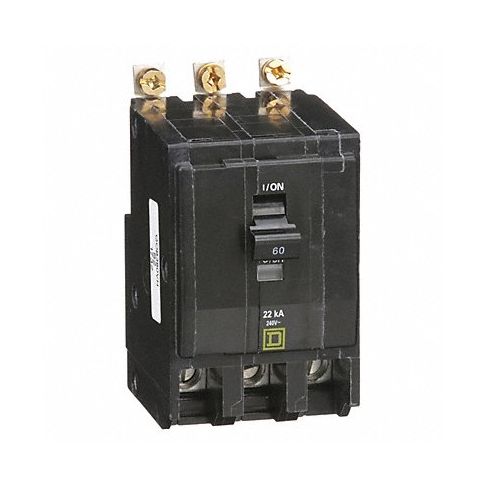

Circuit Breaker 60A Bolt On 120/240V 3P MPN:QOB360VH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2DM99
Circuit Breaker 60A Bolt On 120/240V 3P
The Circuit Breaker 60A Bolt On 120/240V 3P from Square D is an excellent choice for those in need of a reliable and robust miniature circuit breaker. Its bolted-on design offers greater stability than plug-in or unit-mount options, making it ideal for use in NQOD and NQ panelboards or interiors. Capable of interrupting currents upon detection of low-level faults, this circuit breaker helps keep your circuits safe and secure. The lug orientation enables straight-in wiring through bus bars, eliminating the need to pigtail wires and reducing clutter. With a high interrupting capacity and a 120/240V AC voltage rating, this circuit breaker is suitable for use in a wide range of applications where power surges and overloads are a concern.
Top product features:
- Bolt-on design for greater stability
- High interrupting capacity to detect low-level faults
- Lug orientation for straight-in wiring through bus bars
Top product applications:
- Protection from power surges and overloads in residential settings
- Breaker panel protection for appliances and electronic devices in commercial settings
- Use as a replacement breaker for outdated or damaged breakers in older electrical systems
These QOB series miniature circuit breakers are bolted into place in NQOD and NQ panelboards or interiors, so they're more stable than plug-in or unit-mount circuit breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 60 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type High Interrupting Capacity
- Number of Poles 3
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Bolt On
- Compatible Panelboard/Load Center Series QO
- Phase Three
- Series QOB
- Max. AIR Rating 22kA at 120/240V AC
- For Use With Square D NQOD Panelboards
- Terminal Connection Lug
- Frame Size 100A/QO
- Length 3.12 in
- Width 2.25 in
- Depth 2.91 in
- Min. Operating Temp. 104 Degrees F
- Max. Operating Temp. 104 Degrees F
- Min. Wire Size 8 AWG
- Max. Wire Size 2 AWG
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QOB360VH
- MPN: QOB360VH
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
