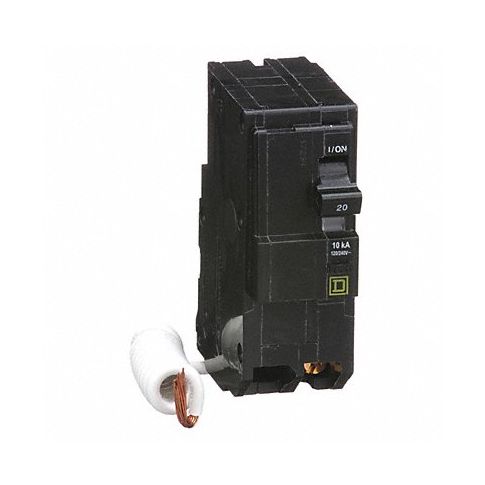

Circuit Breaker 20A Plug In 120/240V 2P MPN:QO220EPD
Free Shipping
In Stock
The Square D QO series miniature circuit breakers provide reliable protection against low-level faults in circuits, ensuring that electrical systems are safe and secure. These plug-in breakers eliminate the need for DIN rail or bolts during installation, making them easier to set up than traditional bolt-on or unit-mounted breakers. With a capacity of 20 amps and a voltage rating of 120/240V AC, they are ideal for use in NQOD and NQ panelboards, as well as QO load centers. The ground fault equipment protection feature detects faults in the circuit and interrupts current flow, preventing potential hazards caused by electrical shorts or overloads. The space-saving design and intuitive operation of these breakers make them perfect for a wide range of residential and commercial applications. Trust Square D's QO series miniature circuit breakers to provide reliable protection and peace of mind for your electrical system.
Top product features:
- Plugs into place without requiring DIN rail or bolts
- Interrupts currents when low-level faults are detected
- Connects to power supply through bus bars
Top product applications:
- Use in NQOD and NQ panelboards for electrical systems in homes or businesses
- Use in QO load centers for added protection in electrical circuits
- Use in areas where space is limited, such as tight spaces or crowded cabinets, due to the plug-in design.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Ground Fault Equipment Protection (30mA)
- Number of Poles 2
- DC Voltage Rating Not Rated
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series NQ, QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 4.12 in
- Width 1.5 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO220EPD
- MPN: QO220EPD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:26pm UTC Category: Distribution
