Circuit Breaker 350A 3P 600VAC LA MPN:LA36350
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2DL46

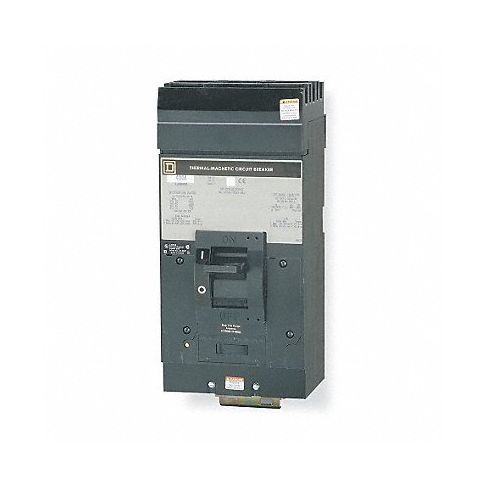

Circuit Breaker 350A 3P 600VAC LA
Square D circuit breakers are essential protective devices designed to safeguard electrical appliances and equipment from short circuits, overloads, and power surges. This molded case circuit breaker, with a rating of 350A and 600V AC, is an ideal choice for controlling electrical currents in control panels, OEM equipment, and industrial/commercial settings. It offers maximum protection up to 42kA at 120/240V AC, ensuring your devices remain secure from damage. With its ease of installation and maintenance-free design, this breaker offers seamless integration into any electrical infrastructure, making it an ideal addition to your facility's circuitry protection plan.
Top product features:
- Molded Case Circuit Breaker Provides reliable circuit protection in compact, easy-to-install and maintenance-free design.
- Amps Rating: 350 A Offers sufficient amperage for high current loads and devices with hefty power requirements.
- Max. AIR Rating: 42kA at 120/240V AC Ensures maximum protection against short circuits, overloads, and power surges, keeping electrical appliances and equipment safe.
Top product applications:
- Circuit Protection Provides essential safeguarding to electrical appliances and equipment by interrupting excessive currents flows caused by short circuits or overloads.
- Electrical Infrastructure Offers a robust solution for controlling electrical currents in various industrial and commercial settings with heavy power requirements, such as manufacturing plants, construction sites, and commercial buildings.
- Panelboards Designed to be plugged into I-line panelboards, allowing easy installation and maintenance in control panels or other electrical distribution equipment for convenient and reliable circuit management.
These Square D molded case circuit breakers plug into I-line panelboards to interrupt excessive current flows and protect devices from electrical damage. They are rated up to 125A and 347VAC/250VDC. They're used in control panels, OEM, electrical distribution equipment, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 350 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 42kA at 120/240V AC
- For Use With I Line Panelboards
- Series LA
- High Amp Trip Setting 3,500 A
- Low Amp Trip Setting 1,750 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Adjustable
- Phase Connection ABC
- Frame Size 400A/LA
- Circuit Breaker Mounting Style I-Line
- Height 11.0 in
- Width 6.0 in
- Depth 5.84 in
- Min. Wire Size 1/0 AWG
- Max. Wire Size 250 MCM, 600 MCM
- Circuit Breaker Actuator Toggle
- Standards CSA, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: LA36350
- MPN: LA36350
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CONDC1U
Product info last updated on April 3, 2024 8:26pm UTC Category: Distribution
