Circuit Breaker 100A Plug In 120/240V 3P MPN:QO31001021

Discount: See in Cart
Free Shipping
In Stock
Brand: Square D
Part #: QO31001021
UPC: 785901030560
SKU
226-CXG-2DG77
$585.29

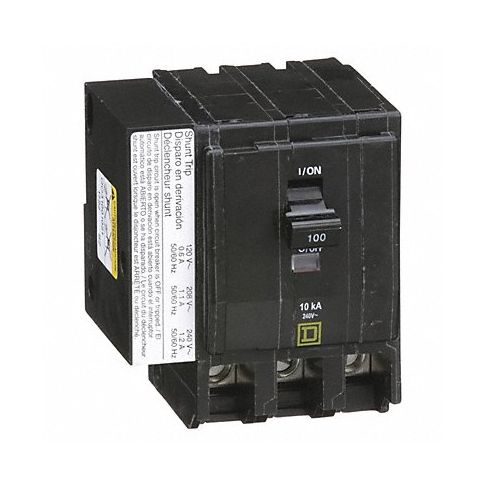

Circuit Breaker 100A Plug In 120/240V 3P

The Square D QO Series Circuit Breaker 100A is designed for versatility, convenience, and safety in any electrical installation. With its plug-in design, it simplifies installation and eliminates the need for DIN rail or bolts. It detects low-level faults in circuits and interrupts currents to protect your equipment and devices from potential damage. The circuit breaker's shunt trip feature allows for quick and easy tripping from remote locations, providing you with greater control over your electrical system. It is suitable for use in a wide range of applications, including commercial buildings, residential homes, and industrial settings. The 100A rating ensures that it can handle heavy-duty loads and provide reliable protection to your circuits. Invest in the Square D QO Series Circuit Breaker 100A for safe, efficient, and convenient electrical management.

Top product features:

  • Plug-in design for easy installation
  • Interrupts currents when low-level faults are detected
  • Connects to power supply through bus bars

Top product applications:

  • Protect electrical circuits in commercial buildings from overloads and short-circuits
  • Safeguard residential homes against circuit damage due to faults or malfunctions
  • Provide a shunt trip feature for easy tripping from remote locations
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.

Technical Specifications

  • Item Miniature Circuit Breaker
  • Amps 100 A
  • AC Voltage Rating 120/240V AC
  • Circuit Breaker Type Shunt Trip
  • Number of Poles 3
  • DC Voltage Rating 48V DC
  • Circuit Breaker Actuator Paddle
  • Circuit Breaker Mounting Style Plug In
  • Compatible Panelboard/Load Center Series QO
  • Phase Three
  • Series QO
  • Max. AIR Rating 10kA at 120/240V AC
  • For Use With QO Load Centers and NQ Panelboards
  • Terminal Connection Lug
  • Frame Size 100A/QO
  • Length 3.5 in
  • Width 2.25 in
  • Depth 2.91 in
  • Min. Wire Size 4 AWG
  • Max. Wire Size 2 AWG
  • Standards CSA Certified, UL Listed

Manufacturer Details

  • Manufacturer: Square D
  • Condensed Mfg Number: QO31001021
  • MPN: QO31001021

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: MX
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8536200020
  • GDS Category Name: Miniature Circuit Breakers
  • GDS Family Name: Distribution
  • GDS Segment Name: Electrical
  • UNSPSC: 39121601
  • UNSPSC Class ID: 16
  • UNSPSC Commodity Name: Circuit protection devices and accessories
  • UNSPSC Commodity ID: 01
  • UNSPSC Commodity Name: Circuit breakers
  • UNSPSC Family ID: 12
  • UNSPSC Family Name: Electrical equipment and components and supplies
  • UNSPSC Segment ID: 39
  • UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B000LEOB96
