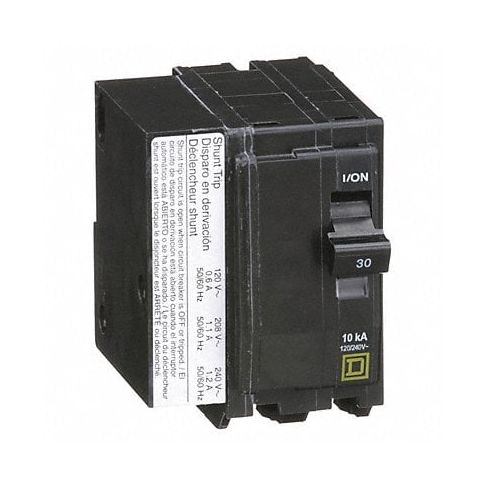

Circuit Breaker 30A Plug In 120/240V 2P MPN:QO2301021
Free Shipping
In Stock
Introducing the QO Miniature Circuit Breakers from Square D - your one-stop solution for seamless wiring projects! These circuit breakers offer an innovative plug-in design that saves time and effort by eliminating the need for bulky DIN rails or bolts. Their shunt trip technology quickly detects low-level faults in the circuit, providing enhanced protection against electrical hazards. Perfectly suited for applications like commercial buildings, workshops, and residential homes, these breakers can accommodate up to 30 amps while maintaining a sleek, space-efficient design. Plus, they're compatible with most load centers and panelboards on the market - making installation a breeze! With their versatile application and unmatched safety features, it's no wonder why the QO Miniature Circuit Breakers are trusted by professionals in every industry.
Top product features:
- Easy installation: Plug-in design eliminates need for DIN rail or bolts
- Enhanced safety: Shunt trip technology detects low-level faults in circuit
- Space-efficient design: Compatible with most load centers and panelboards on the market
Top product applications:
- Commercial buildings: Use in wiring panels and load centers for controlling power supply and breaking circuits
- Workshops: Install in distribution boards to protect tools and equipment from short circuits or overloads
- Residential homes: Use in panelboards and sub-panels for circuit protection and power management
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 30 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 2.25 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO2301021
- MPN: QO2301021
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
