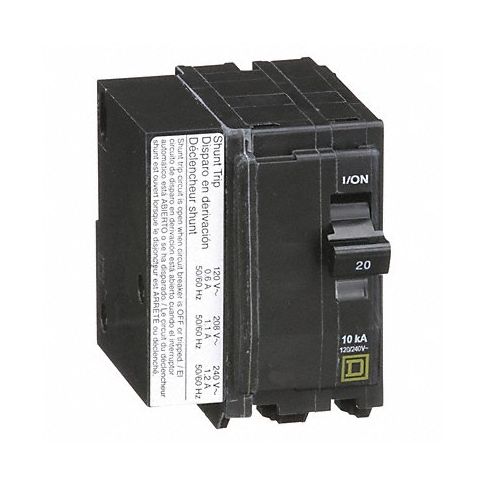

Circuit Breaker 20A Plug In 120/240V 2P MPN:QO2201021
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-2dg56
Circuit Breaker 20A Plug In 120/240V 2P
Introducing the Square D Circuit Breaker 20A Plug In 120/240V 2P, a versatile solution for protecting your electrical circuits from faults and overloads. Designed specifically for use in QO panelboards and load centers, these miniature circuit breakers provide fast-acting protection with their shunt trip functionality. With a rating of 120/240V AC, they are suitable for a wide range of applications in both commercial and residential settings. Their ease of installation without requiring DIN rail or bolts makes them ideal for new constructions or retrofitting. Say goodbye to cluttered panelboards with the help of bus bars that allow you to organize your circuit breakers and save time during maintenance. Invest in the safety and reliability of your electrical systems with Square D's Circuit Breaker 20A Plug In 120/240V 2P - a smart choice for your electrical needs!
Top product features:
- Ease of Installation: Designed to plug into place without requiring DIN rail or bolts, making it quick and easy to install in QO panelboards and load centers.
- Protection against faults and overloads: Interrupts currents when low-level faults are detected in the circuit, providing reliable protection for electrical systems.
- Organization: Connects to the power supply through bus bars that eliminate the need to pigtail wires, helping organize the panelboard or load center for easier maintenance and a cleaner look.
Top product applications:
- Home electrical systems: Use in homes for protection against faults and overloads in circuits.
- Commercial properties: Installation in QO panelboards and load centers for electrical safety and organization.
- Electricians: Use as a quick and easy solution to install circuit breakers without the need for DIN rail or bolts.
Related products
Square D 10A GFCI Circuit Breaker
This Square D GFCI breaker protects against shock and provides overload protection in indoor and outdoor applications. Its 10 A rating allows for additional outlets or lighting while maintaining safety. The ease of installation and water-resistant design make it ideal for use in bathrooms, kitchens, garages, and outdoors.Square D 30A Circuit Breaker
This Square D 30A breaker is perfect for protecting larger electrical loads, such as air conditioners or heating systems. Its compact size and easy installation make it suitable for use in any location where a higher amperage circuit breaker is needed.Square D Breaker Box
This Square D electrical panel provides a centralized location to manage all of the circuits in your home or business. Available in various sizes, from 100 A to 400 A, and with different types of spa
These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 2
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 2.25 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO2201021
- MPN: QO2201021
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000LEQKJU
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
