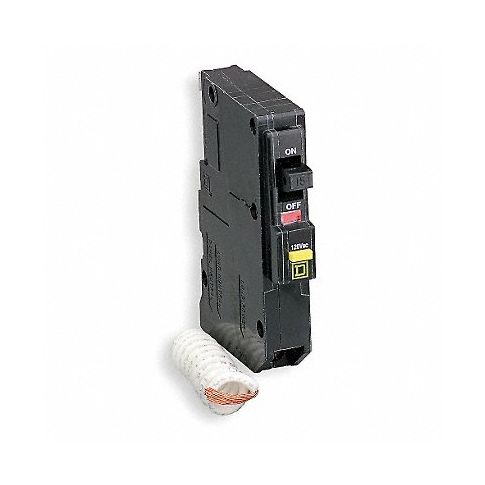

Circuit Breaker 25A Plug In 120V 1P MPN:QO125GFI

These QO series miniature circuit breakers plug into place in NQOD and NQ panelboards and QO load centers without requiring DIN rail or bolts, so they're easier to install than bolt-on and unit-mount breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.

Technical Specifications

• Item Miniature Circuit Breaker
• Amps 25 A
• AC Voltage Rating 120V AC
• Circuit Breaker Type Ground Fault Circuit Interrupter (Class A - 5mA)
• Number of Poles 1
• DC Voltage Rating Not Rated
• Circuit Breaker Actuator Paddle
• Circuit Breaker Mounting Style Plug In
• Compatible Panelboard/Load Center Series NQ, QO
• Phase Single
• Series QO
• Max. AIR Rating 10kA at 120V AC
• For Use With QO Load Centers and NQ Panelboards
• Terminal Connection Pressure plate
• Frame Size 100A/QO
• Length 4.12 in
• Width 0.75 in
• Depth 2.91 in
• Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
• Max. Wire Size 8 AWG
• Standards CSA Certified, UL Listed

Manufacturer Details

• Manufacturer: Square D
• Condensed Mfg Number: QO125GFI
• MPN: QO125GFI

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200020
• GDS Category Name: Miniature Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
