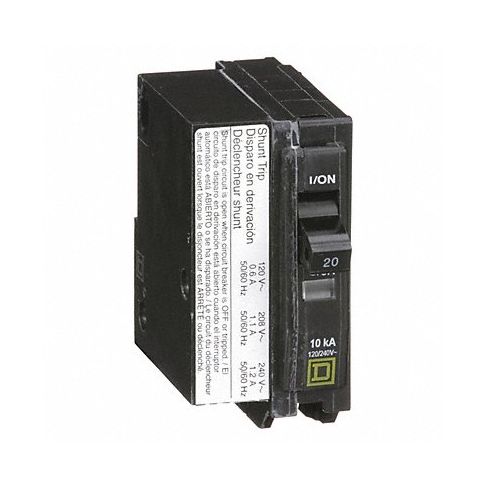

Circuit Breaker 20A Plug In 120/240V 1P MPN:QO1201021
Free Shipping
In Stock
The Square D Circuit Breaker 20A Plug In 120/240V 1P is a cost-effective and easy to install solution for panelboards and load centers. These miniature circuit breakers detect low-level faults in the circuit and interrupt current flow, helping to protect your equipment from damage. With an amperage rating of 20A, this breaker is perfect for various applications such as small electronics, lighting, and appliances. The shunt trip feature allows you to easily reset the breaker in case of a fault, reducing downtime and simplifying operations. The plug-in design eliminates the need for DIN rail or bolts, making installation quick and simple. Choose the Square D Circuit Breaker 20A Plug In 120/240V 1P for reliable protection and effortless maintenance.
Top product features:
- Plug-in design eliminates need for DIN rail or bolts, making installation quick and simple.
- Detects low-level faults in circuit and interrupt current flow for reliable protection.
- Connects to power supply through bus bars for easier organization of panelboard or load center.
Top product applications:
- Protecting electronics and appliances in residential settings from overloading and potential damage.
- Safeguarding lighting systems in commercial spaces from power fluctuations or short circuits.
- Preventing equipment malfunctions and damages during maintenance and repair work in various industries.
Technical Specifications
- Item Miniature Circuit Breaker
- Amps 20 A
- AC Voltage Rating 120/240V AC
- Circuit Breaker Type Shunt Trip
- Number of Poles 1
- DC Voltage Rating 48V DC
- Circuit Breaker Actuator Paddle
- Circuit Breaker Mounting Style Plug In
- Compatible Panelboard/Load Center Series QO
- Phase Single
- Series QO
- Max. AIR Rating 10kA at 120/240V AC
- For Use With QO Load Centers and NQ Panelboards
- Terminal Connection Pressure plate
- Frame Size 100A/QO
- Length 3.0 in
- Width 1.5 in
- Depth 2.91 in
- Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
- Max. Wire Size 8 AWG
- Standards CSA Certified, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: QO1201021
- MPN: QO1201021
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Miniature Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC Category: Distribution
