Safety Switch 240VAC 2PST 60 Amps AC MPN:DU222RB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2CL85

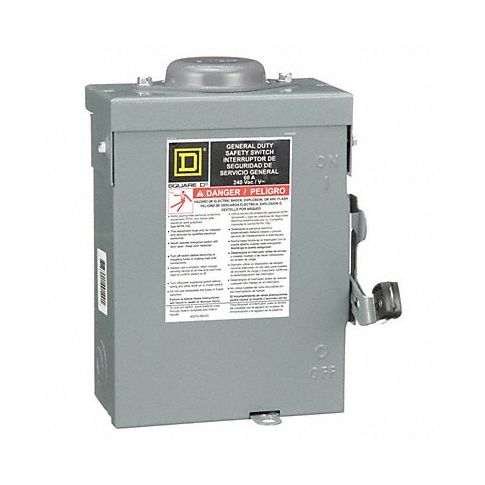

Safety Switch 240VAC 2PST 60 Amps AC
Keep your electrical system safe and secure with our high-quality Safety Switch from Square D. Ideal for use with service entrance equipment, this switch offers a powerful 10kA short-circuit current rating when used with Class H fuses, ensuring maximum protection for your home or office. Its visible blade design allows for easy identification of the On/Off position, and its quick-make, quick-break mechanism provides reliable operation. Made with plated-copper fuse clips and multiple padlock provisions for added security, this switch is perfect for any electrical setting. Order yours today!
Top product features:
- Visible blade for On/Off identification
- Quick-make, quick-break operating mechanism
- Spring-reinforced, plated-copper fuse clips
Top product applications:
- Residential use Protect electrical circuits from short-circuit currents and provide off switch identification for added safety
- Commercial use Provide a general-duty safety switch in service entrance equipment to prevent damage from short-circuit currents
- Industrial use Use the spring-reinforced, plated-copper fuse clips to connect with aluminum or copper conductors for secure electrical connections
Suitable for use with service entrance equipment, this general-duty safety switch provides a 10kA short-circuit current rating when used with, or protected by, a Class H fuse. It has a 100kA short-circuit current rating when used with, or protected by, a Class R cartridge-type fuse (with a Class R fuse kit installed). Features include visible blades for positive identification that the switch is Off, a quick-make, quick-break operating mechanism, and spring-reinforced, plated-copper fuse clips. The lugs are suitable for aluminum or copper conductors. There are multiple padlock provisions in the Off position. An equipment grounding kit, available separately, is required.
Technical Specifications
- Item Safety Switch
- Protection Method Nonfusible
- Duty General
- Amps AC 60 A
- Voltage 240V AC
- Phase 1
- HP 10 hp @ 240V AC
- NEMA Enclosure Type 3R
- IP Rating 14
- Metallic / Non-Metallic Metallic
- Material of Construction Galvannealed Steel
- Number of Wires 2
- Number of Poles 2
- Contact Form 2PST
- Height 9.6 in
- Width 7.7 in
- Depth 3.8 in
- Standards UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: DU222RB
- MPN: DU222RB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509045
- GDS Category Name: Safety and Disconnect Switches
- GDS Family Name: Safety Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Safety switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Safety Switches
