H5204 Lighting Contactr 6P 120V Open ElecHeld MPN:8903LO60V02
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-2CG67
H5204 Lighting Contactr 6P 120V Open ElecHeld

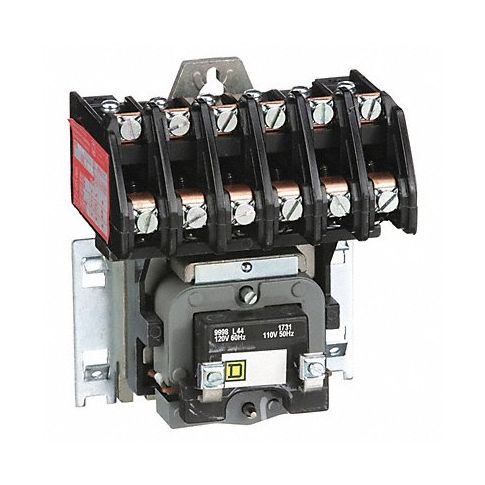

Introducing the H5204 Lighting Magnetic Contactor from Square D - an electrically held contactor designed for the ultimate control and switching of electric loads. This versatile device boasts a maximum of six poles and operates on 120V AC coils, making it perfect for lighting applications such as dimming or speed control. Its silver cadmium oxide double-break contacts ensure maximum reliability and long-lasting performance while the field-convertible contacts provide added convenience. The H5204 is ideal for both commercial and residential settings where precise and reliable switching of loads is required. Trust Square D to deliver top-quality products that meet the demands of any project.
Top product features:
- Six poles for high contact rating capability
- Field-convertible contacts for added convenience
- Double-break contacts for maximum reliability and long-lasting performance
Top product applications:
- Lighting control in commercial or residential spaces
- Speed control for motorized devices like fans or pumps
- Dimming lights for stage and entertainment purposes
This open-type contactor has 120V coils operable on 50 Hz at 110V, 277V at 60 Hz. The field-convertible contacts have normally open and normally closed indicators; maximum 8 normally closed contacts. The double-break contacts are silver cadmium oxide.
Technical Specifications
- Item Lighting Magnetic Contactor
- Number of Poles 6
- Coil Volts 120V AC
- Full Load Amps 30 A
- Contactor Type Electrically Held
- Enclosure NEMA Rating No Enclosure
- Height 5.0 in
- Width 4.25 in
- Depth 3.12 in
- Hz 50/60
- Standards CSA, UL
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 8903LO60V02
- MPN: 8903LO60V02
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490065
- GDS Category Name: Lighting Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00CONED4A
Product info last updated on January 19, 2024 4:53pm UTC Category: Starters and Contactors
