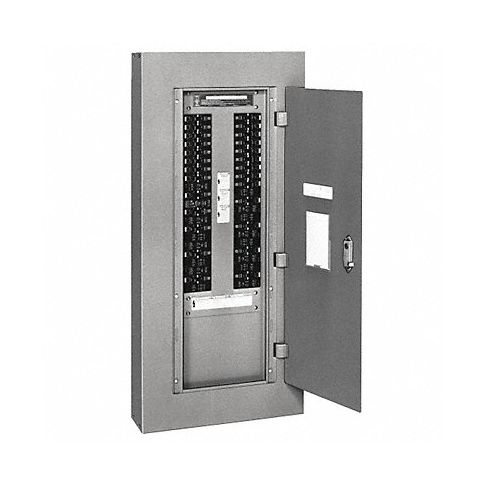

Panelboard Interior 600 A 277/480VAC MPN:NF430L6C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-22P073
Panelboard Interior 600 A 277/480VAC
Boost your electrical systems with Square D NF panelboard interiors designed for converting to main lug panels or main breaker load centers as needed. This versatile option delivers superior distribution of power and comes in a customizable design to meet diverse requirements in residential, commercial, and industrial settings. The main lug panel interiors provide easy installation with bolt-on breakers and ensure robust protection against overcurrents. Save space while optimizing efficiency and safety for your operation with these durable solutions. Elevate your electrical system now with Square D's superior product engineering!
Top product features:
- Convertible main lug panel design for easy customization
- Main lug distribution for better circuit protection and efficiency
- Customizable bolt-on breakers and top/bottom feed options for versatile applications
Top product applications:
- Industrial environments for heavy power distribution and protection
- Residential settings to control circuits in breaker boxes and panels
- Commercial spaces as main or sub panels for branch circuit breakers
These Square D NF main lug panel interiors distribute power downstream from main breakers. They're used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center with a required adapter kit and main circuit breaker, so they can be used to distribute the main supply of power if needed. They're used with bolt-on branch circuit breakers and top and bottom feed breakers to protect circuits from overcurrents. These interiors are used as part of a complete panelboard system and can be customized to meet different needs. They're used in residential, commercial, and industrial applications.
Technical Specifications
- Item Panelboard Interior
- Main Circuit Breaker or Main Lug Convertible, Main Lug
- Circuit Breaker Series EDB, EDG, EDJ
- Amps 600 A
- Short Circuit Current Rating 100000 RMS Symmetrical
- Number of Spaces 30
- Voltage 277/480YV AC
- Phase 3
- Bus Material Copper
- Recommended Enclosure 12N640 for Main Breaker, 1D700 for Main Lug
- Circuit Breaker Type Plug In Miniature
- For Use With NF Circuit Breakers
- Height 46 in
- Depth 5 3/4 in
- Width 10 7/16 in
- Recommended Flush Cover 3TX94 for Main Breaker, 4HHA2 for Main Lug
- Recommended Ground Bar Kit 5B716
- Recommended Surface Cover 12N641 for Main Breaker, 3TX88 for Main Lug
- Standards CSA C22.2, UL 67
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: NF430L6C
- MPN: NF430L6C
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109150
- GDS Category Name: Panel Board Interiors
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121103
- UNSPSC Class ID: 11
- UNSPSC Commodity Name: Distribution and control centers and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Panelboards
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
