Control Transformer 1.5kVA 6.16 in H MPN:9070T1500D3
SKU
226-CXG-1YUV7

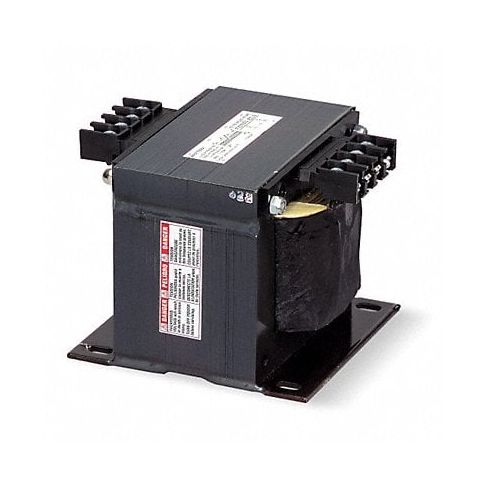

Control Transformer 1.5kVA 6.16 in H
The Square D Control Transformer is designed for demanding industrial applications and features low impedance windings to ensure excellent voltage regulation. With a 1.5 kVA VA rating, this transformer can accommodate high inrush current associated with contactors, starters, solenoids, relays, and other electrical devices. It is copper wound and vacuum impregnated with varnish to provide enhanced durability and longevity. Ideal for various commercial and industrial settings such as manufacturing facilities, construction sites, and automotive repair shops, this transformer offers reliable power control for a wide range of applications.
Top product features:
- Low impedance windings for excellent voltage regulation.
- Capable of handling high inrush current associated with contactors, starters, solenoids, and relays.
- Copper wound and vacuum impregnated with varnish for enhanced durability and longevity.
Top product applications:
- Controlling electrical equipment and machinery in factories and industrial settings.
- Powering appliances, tools, and lights in construction sites and remote locations.
- Regulating voltage for sensitive electronic devices and gadgets during testing and repairs.
Designed with low impedance windings for excellent voltage regulation, this transformer can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. It is copper wound and vacuum impregnated with varnish.
Technical Specifications
- Item - Transformer Control Transformer
- Input Voltage - Transformer 208V AC
- Output Voltage - Transformer 120V AC
- VA Rating - Transformer 1.5 kVA
- Protective Device None
- Enclosure Style - Transformer Open
- Mounting - Transformer Foot
- Phase - Electrical 1
- Hz - Electrical 50 Hz, 60 Hz
- Temp. Rise 115 Degrees C
- Enclosure Finish Epoxy Resin Varnish
- Height 6.16 in
- Depth 7.06 in
- Width 5.81 in
- Standards CE Compliant, CSA Certified, UL Listed
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: 9070T1500D3
- MPN: 9070T1500D3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8504320000
- GDS Category Name: Control Transformers
- GDS Family Name: Transformers
- GDS Segment Name: Electrical
- UNSPSC: 39121002
- UNSPSC Class ID: 10
- UNSPSC Commodity Name: Power conditioning equipment
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Power supply transformers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B007V6G6ZE, B0137UJRJ4
Product info last updated on April 3, 2024 11:36pm UTC Category: Transformers
