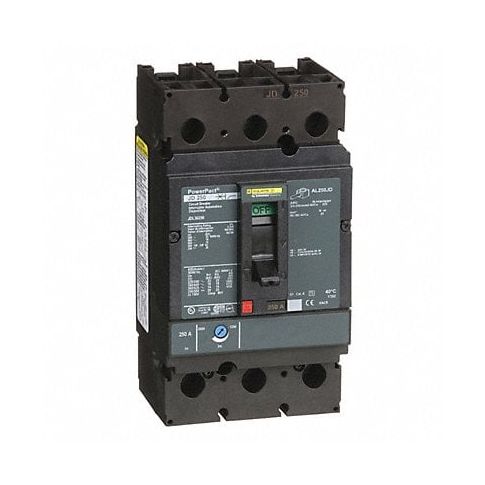

Circuit Breaker 250A 3P 600VAC JD MPN:JDL36250
SKU
226-CXG-1MAZ9
Circuit Breaker 250A 3P 600VAC JD
Introducing Square D J-frame molded case circuit breakers - perfect for protecting devices from electrical damage in demanding applications! With ratings up to 250A and 600VAC, these versatile breakers are ideal for construction, oil and gas, marine, and other industrial or commercial settings. Their robust design incorporates current-carrying parts, mechanisms, and trip devices into a durable molded case for maximum reliability. Say goodbye to excessive currents damaging your valuable equipment with Square D's trusted JD series circuit breakers!
Top product features:
- Rated up to 250A for heavy-duty applications
- Rated up to 600VAC for a wide range of electrical systems
- Contained in a durable molded case for maximum reliability
Top product applications:
- Construction sites for protecting electrical systems and equipment from overloading
- Marine vessels for power management and protection against electrical surges
- Manufacturing plants to prevent damage to machines or equipment caused by excessive current
J-frame Square D molded case circuit breakers are rated up to 250A and 600VAC and interrupt excessive current flows to protect devices from electrical damage. They're used in construction, oil and gas, marine, and other industrial and commercial applications. Their current-carrying parts, mechanisms, and trip devices are contained in a molded case.
Technical Specifications
- Item Molded Case Circuit Breaker
- Amps 250 A
- AC Voltage Rating 600V AC
- Max. AIR Rating 25kA at 240V AC
- Series JD
- High Amp Trip Setting 2,500 A
- Low Amp Trip Setting 1,250 A
- Circuit Breaker Type Standard
- Number of Poles 3
- DC Voltage Rating 250V DC
- Terminal Connection Line/Load Lug
- Trip Type Thermal Magnetic
- Phase 3
- Instantaneous Trip Adjustable
- Phase Connection ABC
- Frame Size 250A/JD
- Circuit Breaker Mounting Style Free Standing
- Height 7.52 in
- Width 4.12 in
- Depth 5.0 in
- Min. Wire Size 3 AWG
- Max. Wire Size 350 MCM
- Circuit Breaker Actuator Toggle
- Standards CCC, CE, CSA, IEC, UL Listed
Manufacturer Details
- Manufacturer: Square D
- Condensed Mfg Number: JDL36250
- MPN: JDL36250
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536200020
- GDS Category Name: Molded Case Circuit Breakers
- GDS Family Name: Distribution
- GDS Segment Name: Electrical
- UNSPSC: 39121601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Circuit protection devices and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Circuit breakers
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
